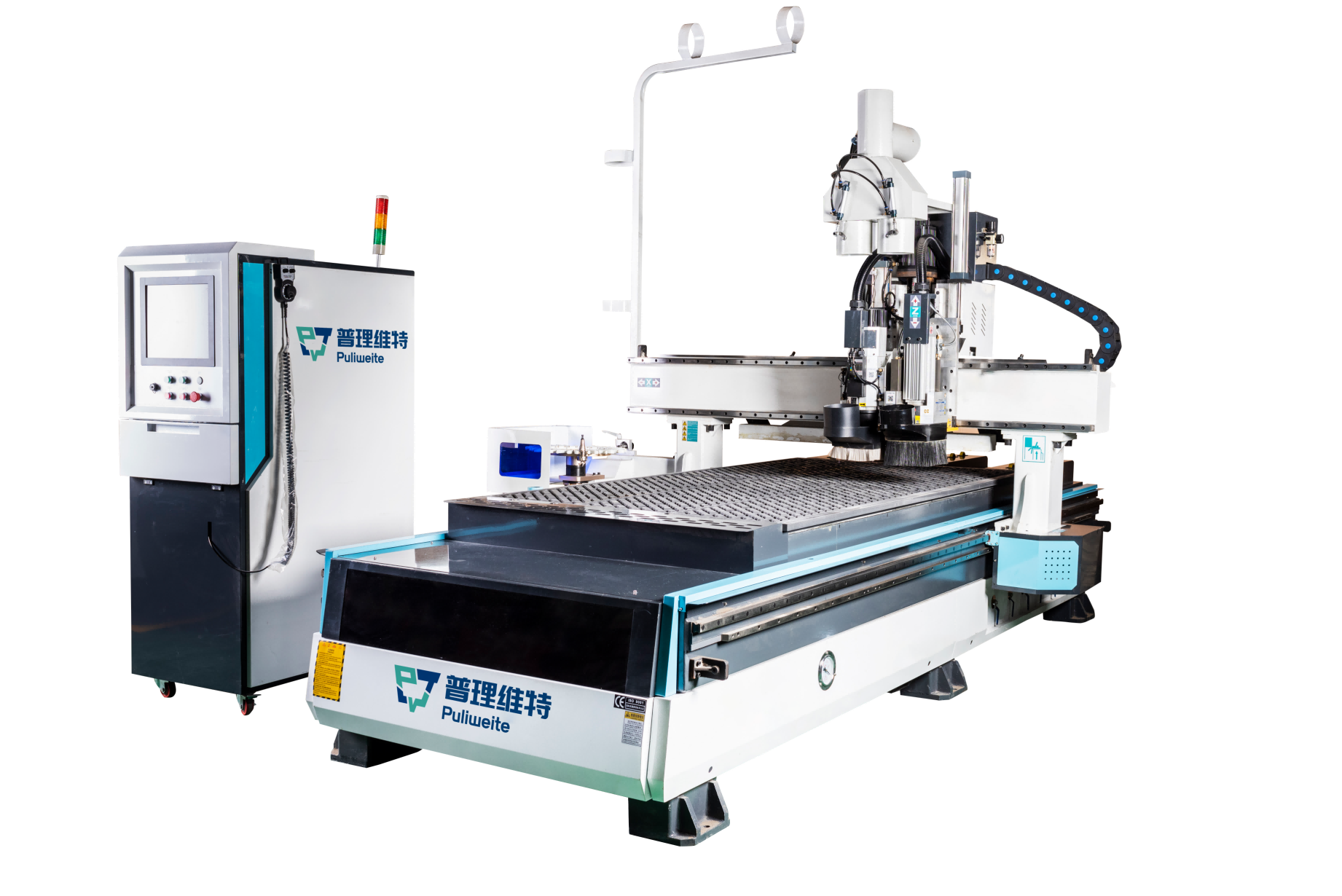

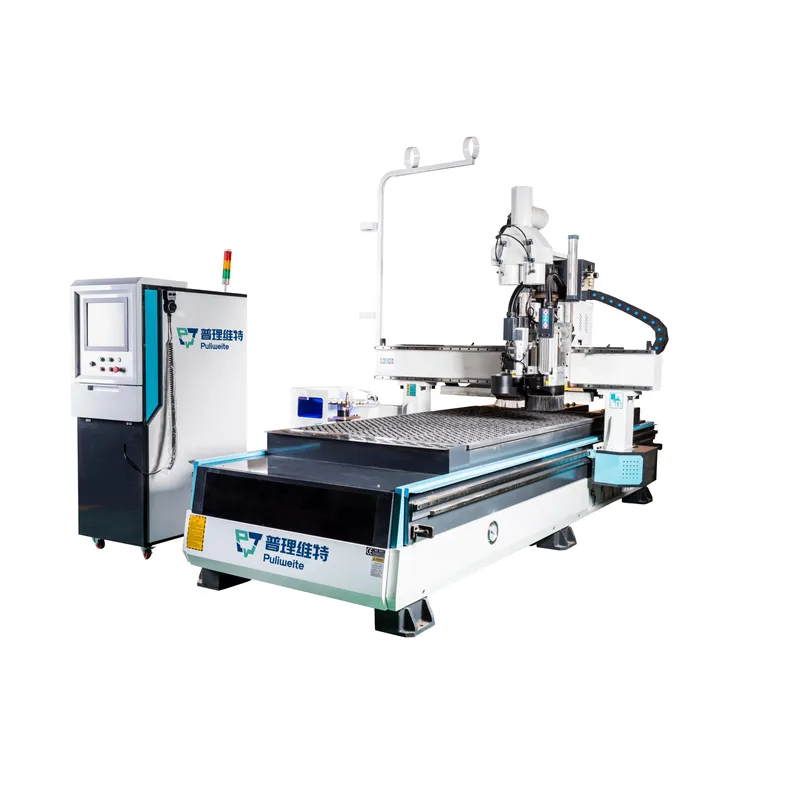

P1 Wood cutting machine
◣Performance Characteristics
CNC wood cutting machining center, with high efficiency, reinforce lathe structur, sturdy and durable.
Adopt reasonable structured double-deck mulitiholes table, with strong adsorption.
Compared with traditional cutting, it can save a lot of labor cost. it only need one person to operate, even one person can operate several devices, zero error,simple operation and high efficiency.

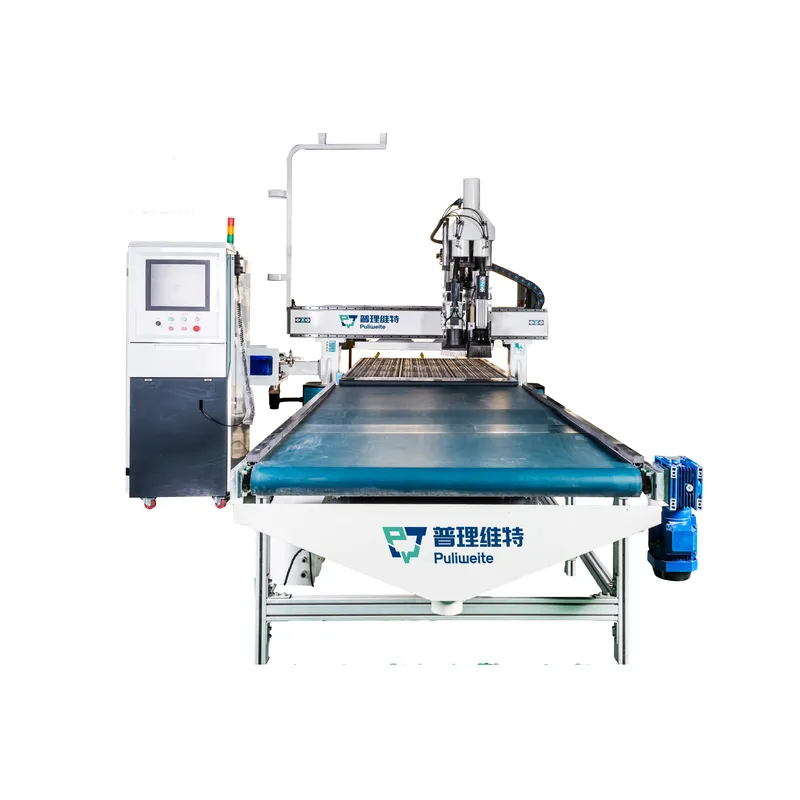

Optional automatic loading and unloading. This machine can load automaticly, Cut wooden boards optimally optimally, drill vertical holes in once time. Uninterrupted processing achieve output maximum efficiency.
◣Technical Parameters
Model | PLWT-P1 |
Gantry | Generous tube beam structure |
Drive system | Servo moter system |
Spindle speed | 0-18000rpm/min |
Transmission mode | Lead screw + helical teeth |
Rail | Taiwan straight square rail 30 series |
Warranty | One year warranty for the entire machine |
Accuracy | Repeat positioning 0.02mm/2000mm |
Compatible software | It can interface with Yunxi, Haixun, Ewood and 1010, etc |
Scope of application | Cabinet door, wardrobe door, cabinet carving, wine cabinet, tatami mats, majiang table, etc |
Lubrication | Automatic oiling system |
frequency converter | 11Kw Bested/Shanghai Fuling |
Drives | Leisai 1500w motor matching drive |
Operating Systems | Weihong control system |
Motors | 9kw automatic tool change spindle |
Tabletop | Vacuum adsorption( integrated suction clamp ) |
Vacuum pump | 7.5kw water-cooled vacuum pump |
Input Voltage | 220V/380V |
Operating instructions | G Code(*.nc.*.mmg.*.u00.etc.).*eng |
Working stroke | 1300mm*2800mm |
◣Samples
01 Wardrobe door 02 Majiang table 03 Cabinet door 04 Wine cabinet
