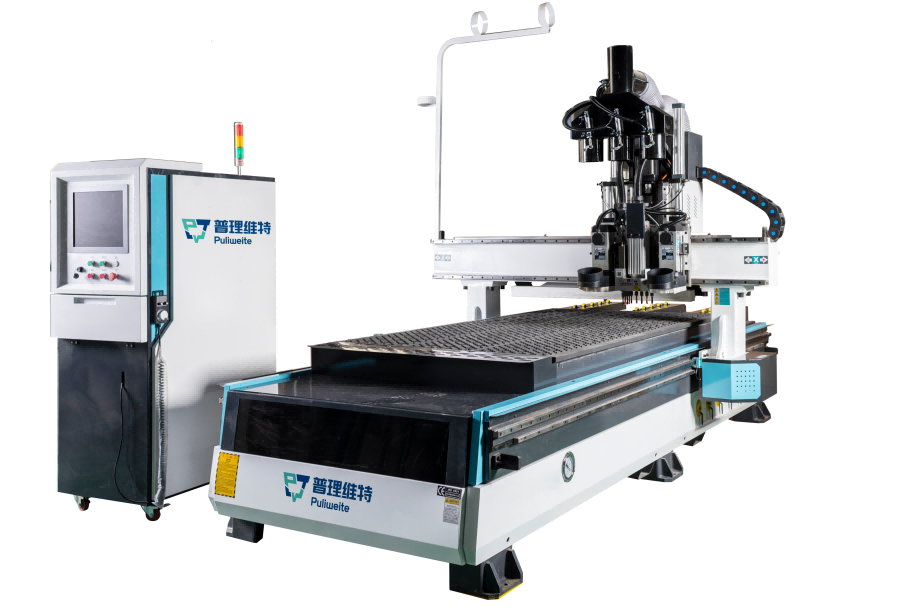

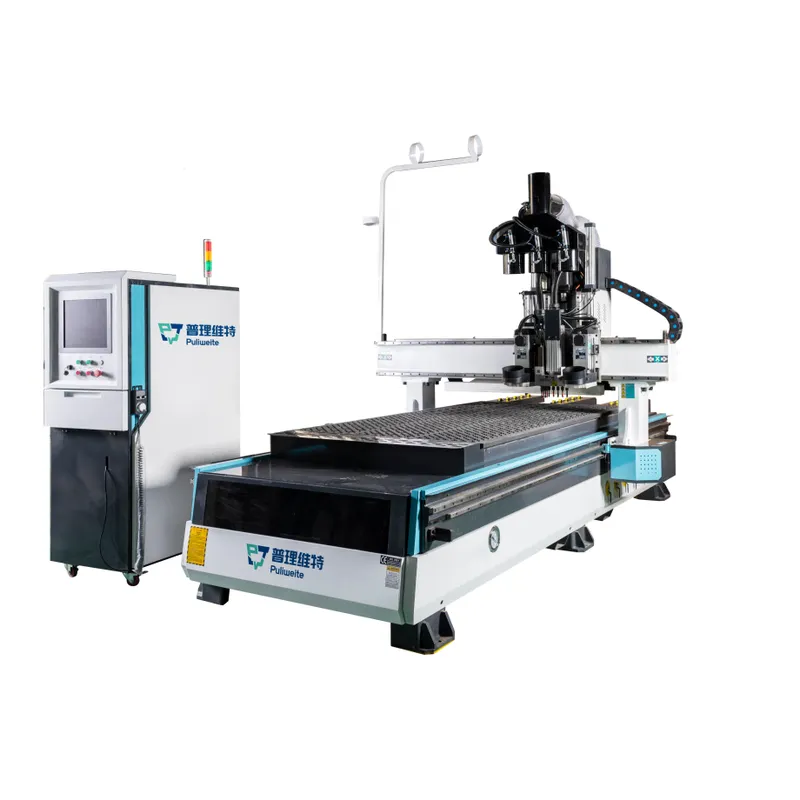

P2 Row drill package double spindle
◣Performance Characteristics
The machine body is welded with thick-walled steel pipes and treated with high-temperature tempering to ensure minimal deformation,high rigidity and great strength.

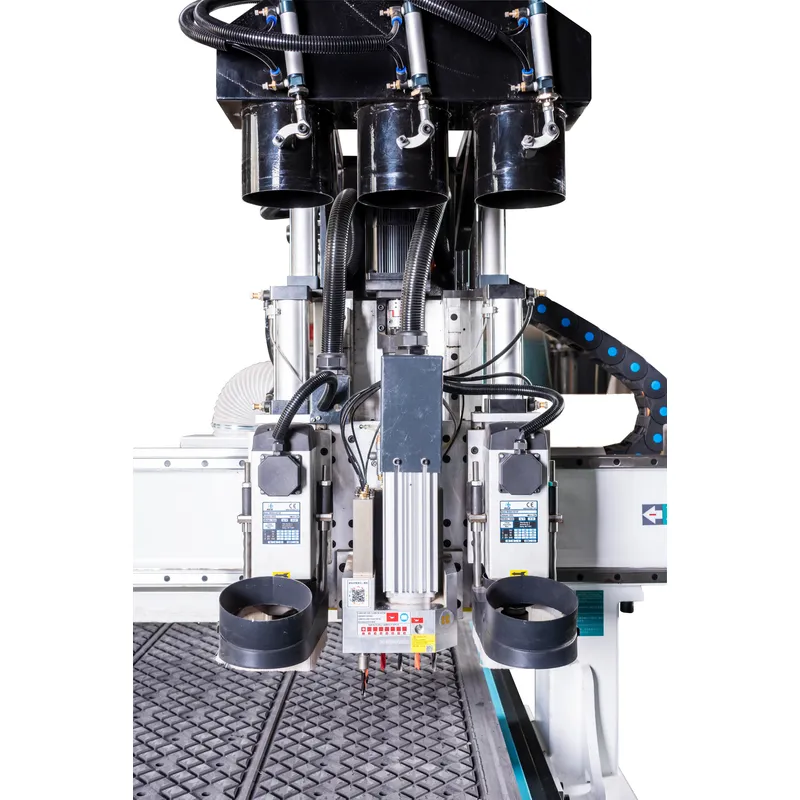

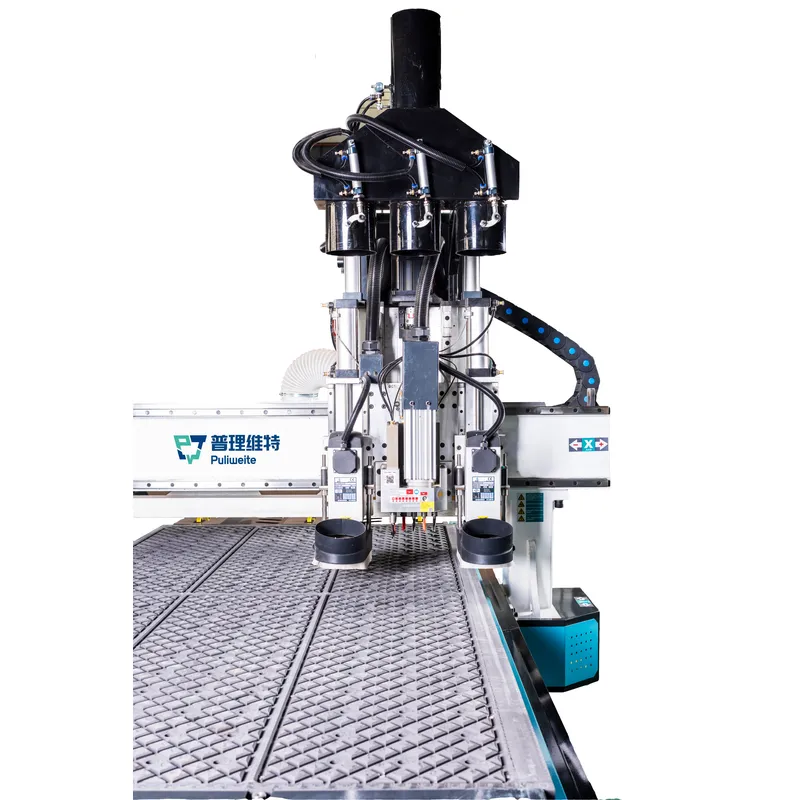

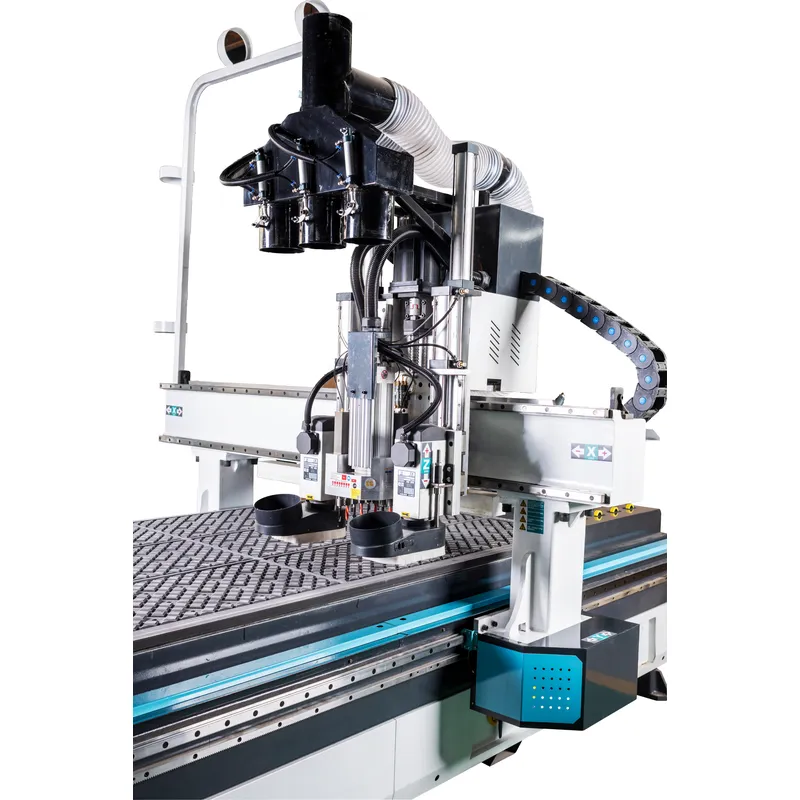

The spindle tool changer adopts an air-cooled spindle, offering high precision, long lifespan, and smooth operation, making it stable and reliable for long-term processing. The carousel tool magazine moves with the gantry, allowing for quick and easy tool changes, while a dedicated tool setting device accurately compensates for tool length discrepancies.
Vacuum suction: The tabletop uses a dual-layer vacuum adsorption design made from high-strength bakelite board,which is milled in a single pass and provides extremely high suction power.
Automatic oiling: The automatic oil lubrication system allows for easy routine maintenance with just a simple press.
Model | PLWT-P2 |
Gantry | Generous tube beam structure |
Drive system | Servo moter system |
Spindle speed | 0-18000rpm/min |
Transmission mode | Lead screw + helical teeth |
Rail | Taiwan straight square rail 30 series |
Warranty | One year warranty for the entire machine |
Accuracy | Repeat positioning 0.02mm/2000mm |
Compatible software | It can interface with Yunxi, Haixun, Ewood and 1010, etc |
Scope of application | Panel furniture production, cabinet door production,wood engraving,circuit board engraving, etc |
Lubrication | Automatic oiling system |
frequency converter | 11kw Bested/Shanghai Fuling |
Drives | Leisai 1500w motor matching drive |

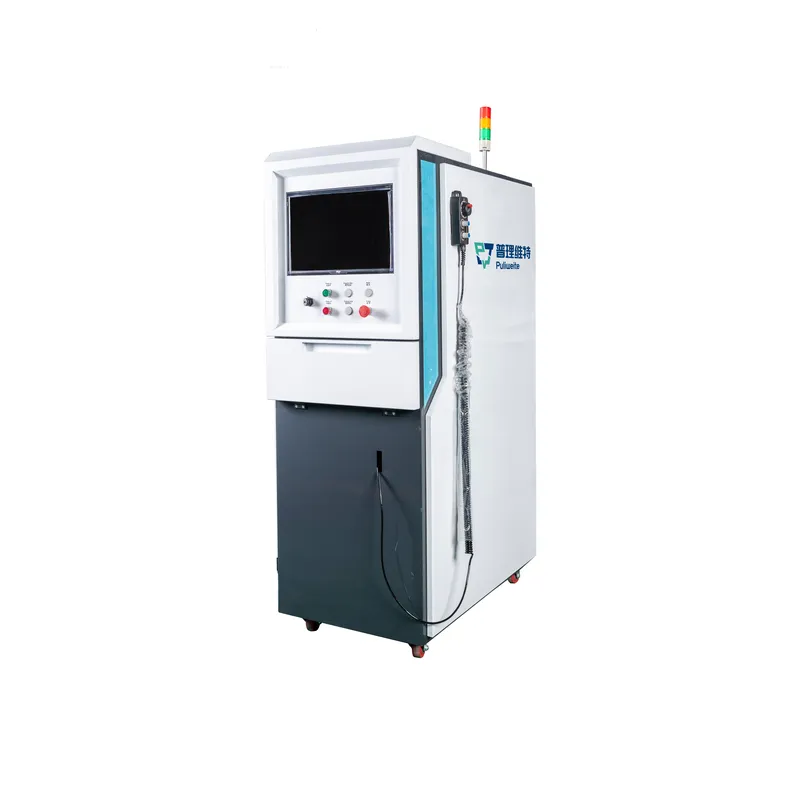

Operating Systems | Weihong control system |
Motors | 9kw automatic tool change spindle |
Tabletop | Vacuum adsorption( integrated suction clamp ) |
Vacuum pump | 7.5kw water-cooled vacuum pump |
Input Voltage | 220V/380V |
Operating instructions | G Code(*.nc.*.mmg.*.u00.etc.).*eng |
Working stroke | 1300mm*2800mm |
◣Samples
01 Panel furniture 02 Panel furniture 03 Cabinet door 04 Wood engraving
