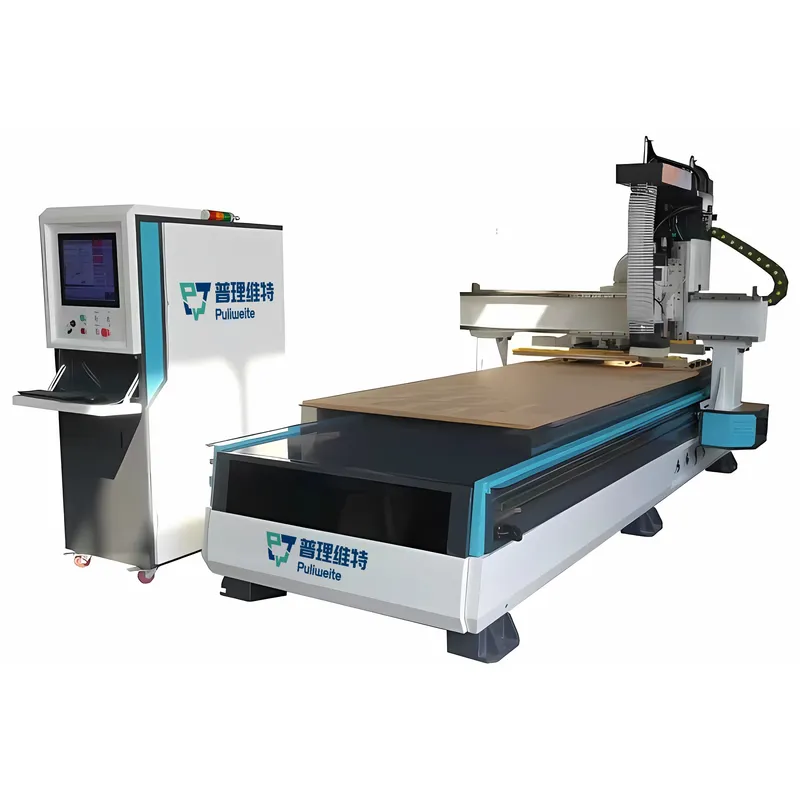

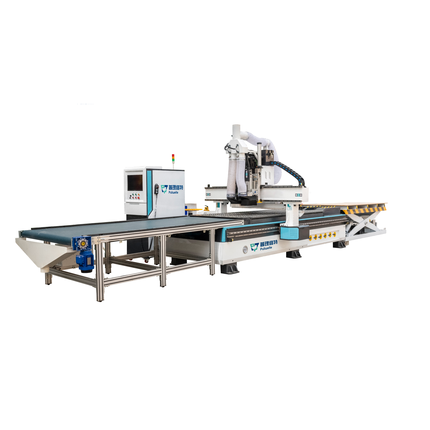

P5 Round disk auto tool changer cnc router
◣Performance Characteristics
The machine body is welded from thick-walled steel pipes and treated with high-temperature tempering to ensure minimal deformation, high rigidity, and great strength.
This machine is suitable for processing a variety of composite products with a wide range of functions, including milling, drilling, cutting, side milling, and chamfering.
The spindle tool magazine uses an air-cooled tool-changing spindle with high precision, long lifespan, and smooth operation, making it stable and reliable for long-term processing.
Vacuum suction: The table adopts a double-layer vacuum suction design made from high-strength bakelite, milled in a single pass, providing extremely strong suction power.
Automatic oiling: The automatic lubrication system allows for easy maintenance with a simple press of a button.
Model | PLWT-P5 |
Gantry | Generous tube beam structure |
Drive system | Servo moter system |
Spindle speed | 24000rpm/min |
Transmission mode | Lead screw + helical teeth |

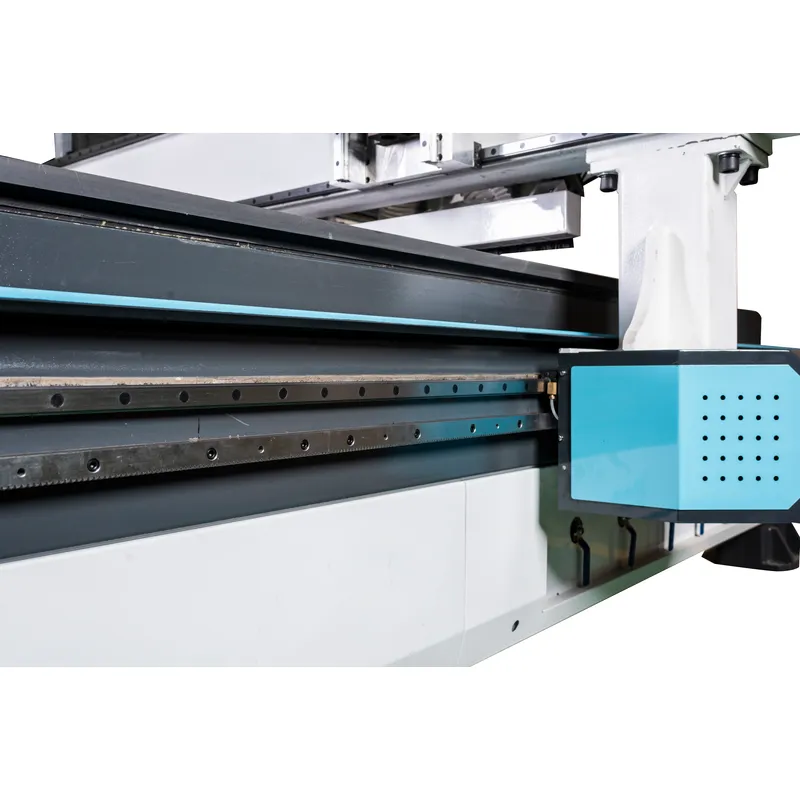

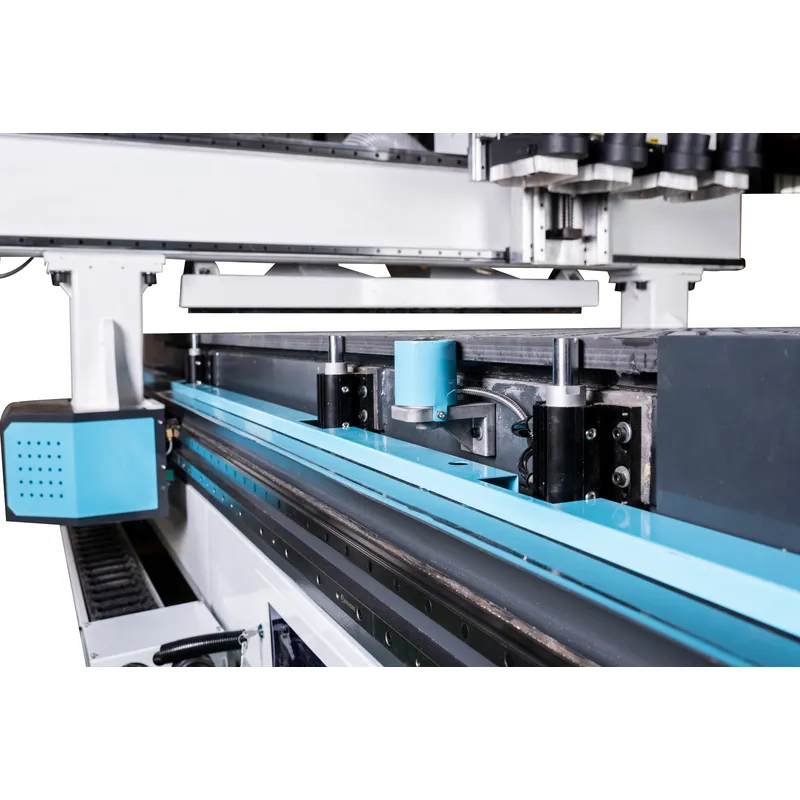

Rail | Taiwan straight square rail 30 series |
Warranty | One year warranty for the entire machine |
Accuracy | Repeat positioning 0.02mm/2000mm |
Compatible software | It can interface with Yunxi, Haixun, Ewood and 1010, etc |
Scope of application | Drilling, cutting, side milling, chamfering, etc |
Lubrication | Automatic oiling system |
frequency converter | 11kw Bested/Shanghai Fuling |
Drives | Leisai 1500w motor matching drive |

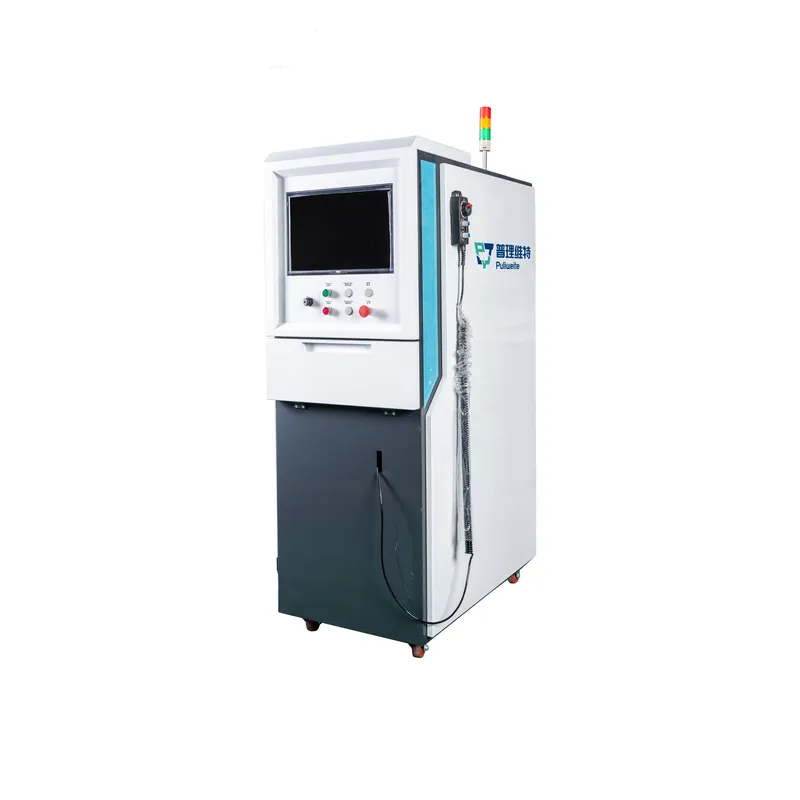

Operating Systems | Weihong control system |
Motors | 9kw automatic tool change spindle |
Tabletop | Vacuum adsorption( integrated suction clamp ) |
Vacuum pump | 7.5kw water-cooled vacuum pump |
Input Voltage | 220V/380V |
Operating instructions | G Code(*.nc.*.mmg.*.u00.etc.).*eng |
Working stroke | 1300mm*2800mm |
01 Chamfering 02 Side milling 03 Cutting 04 Drilling
