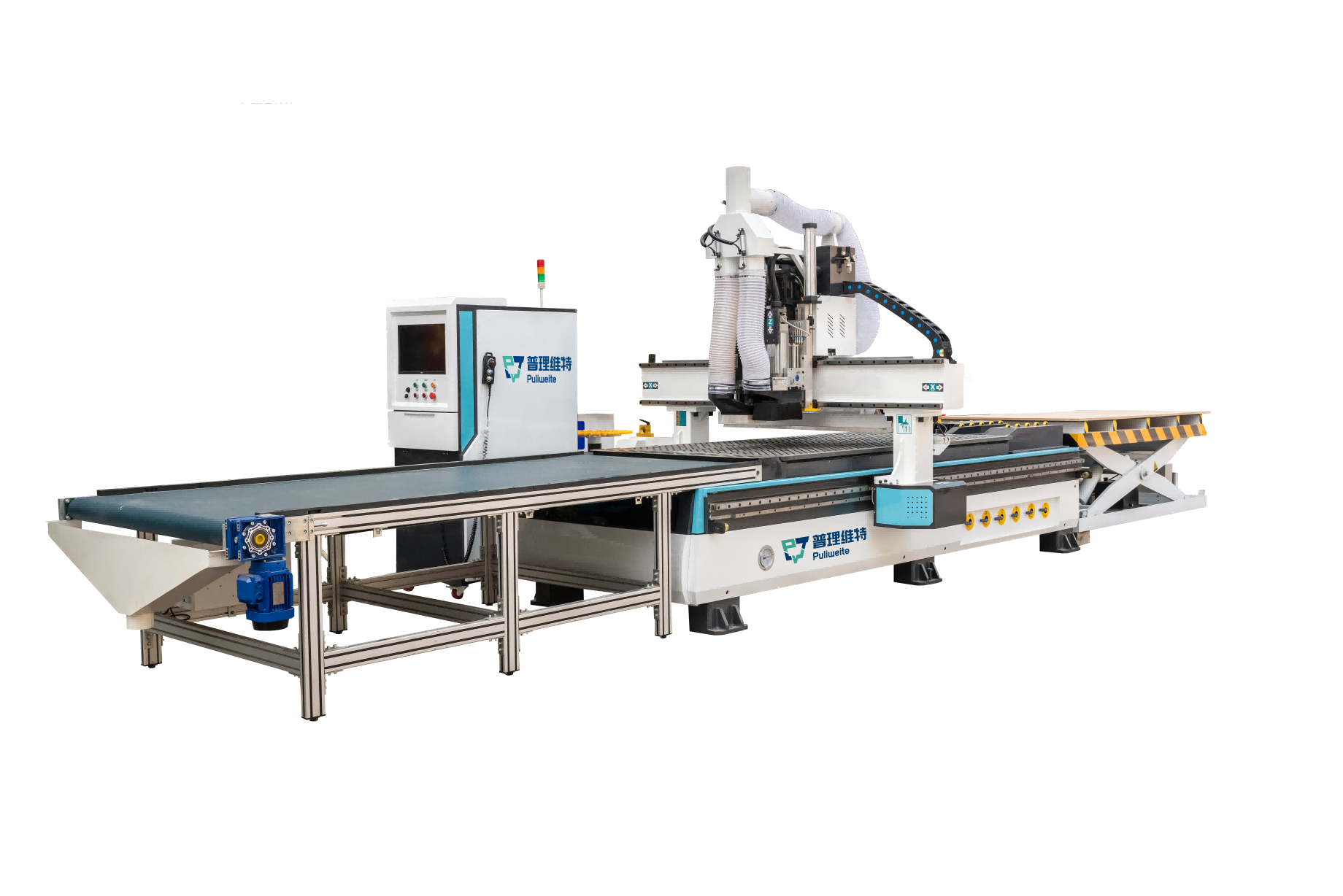

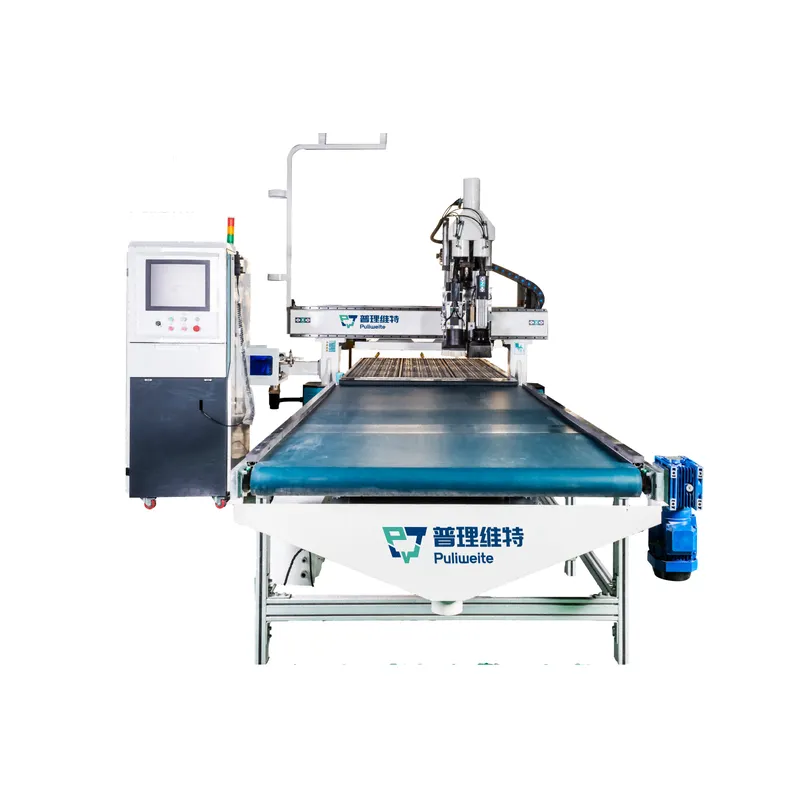

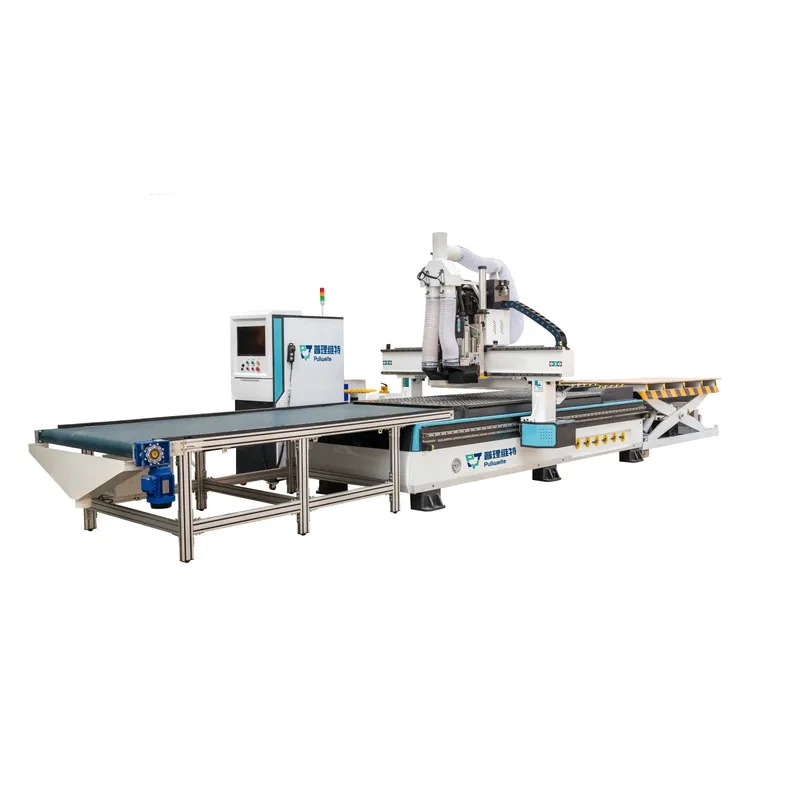

ATC cnc router with auto up and down load table

This machine is a new type of panel furniture production line that reduces labor costs and increases production efficiency. It performs automatic optimization of material cutting, front and back vertical drilling, and front and back grooving.
Equipped with multiple spindles, the machine can perform various operations such as cutting, grooving, milling, vertical drilling, and hole milling, which reduces tool change time.
The control interface is user-friendly and designed for simple operation, allowing operators to start working after basic training, eliminating the need for skilled workers.
The table structure features a double-layer vacuum suction design, which is more stable than traditional single-layer suction.
With four tools, the machine can also perform basic cabinet door carving and easily handle common patterns, making it versatile for multiple purposes.
The machine has a robust and simple structure, achieving a balance between speed and precision. It comes with an automatic material pushing device that pushes the material off the processing table after machining, making it easy for operators to retrieve materials and significantly increasing efficiency by saving overall processing time.
An automatic loading platform is available as an optional feature, reducing dependence on manual labor and allowing a single person to complete the work.


◣Performance Characteristics

This machine is a new type of panel furniture production line that reduces labor costs and increases production efficiency. It performs automatic optimization of material cutting, front and back vertical drilling, and front and back grooving.
Equipped with multiple spindles, the machine can perform various operations such as cutting, grooving, milling, vertical drilling, and hole milling, which reduces tool change time.
The control interface is user-friendly and designed for simple operation, allowing operators to start working after basic training, eliminating the need for skilled workers.
The table structure features a double-layer vacuum suction design, which is more stable than traditional single-layer suction.
With four tools, the machine can also perform basic cabinet door carving and easily handle common patterns, making it versatile for multiple purposes.
The machine has a robust and simple structure, achieving a balance between speed and precision. It comes with an automatic material pushing device that pushes the material off the processing table after machining, making it easy for operators to retrieve materials and significantly increasing efficiency by saving overall processing time.
An automatic loading platform is available as an optional feature, reducing dependence on manual labor and allowing a single person to complete the work.

Model	PLWT-P3
Gantry	Generous tube beam structure
Drive system	Servo moter system
Spindle speed	0-18000rpm/min
Transmission mode	Lead screw + helical teeth
Rail	Taiwan straight square rail 30 series
Warranty	One year warranty for the entire machine
Accuracy	Repeat positioning 0.01mm
Compatible software	It can interface with Yunxi, Haixun, Ewood and 1010, etc
Scope of application	Panel furniture and office furniture, acrylic, PVC, voice box, tracks of bowling ball, etc
Lubrication	Automatic oiling system
frequency converter	11kw Bested/Shanghai Fuling
Drives	Leisai 1500w motor matching drive

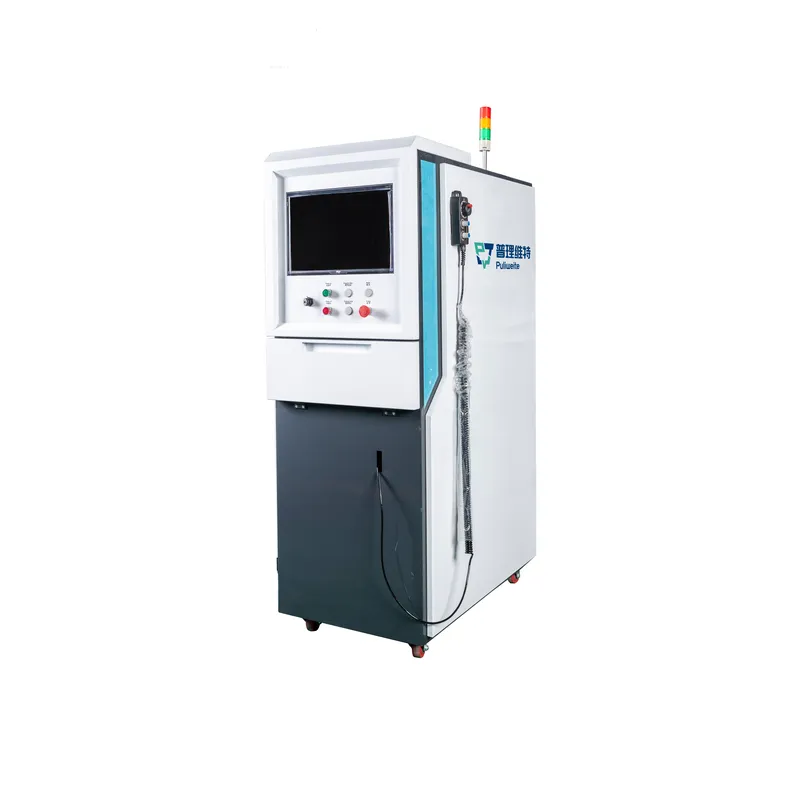

Operating Systems	Weihong control system
Motors	9kw automatic tool change spindle
Tabletop	Vacuum adsorption( integrated suction clamp )
Vacuum pump	7.5kw water-cooled vacuum pump
Input Voltage	220V/380V
Operating instructions	*G Code(.nc..mmg..u00.etc.).eng*
Working stroke	*1300mm2800mm**
