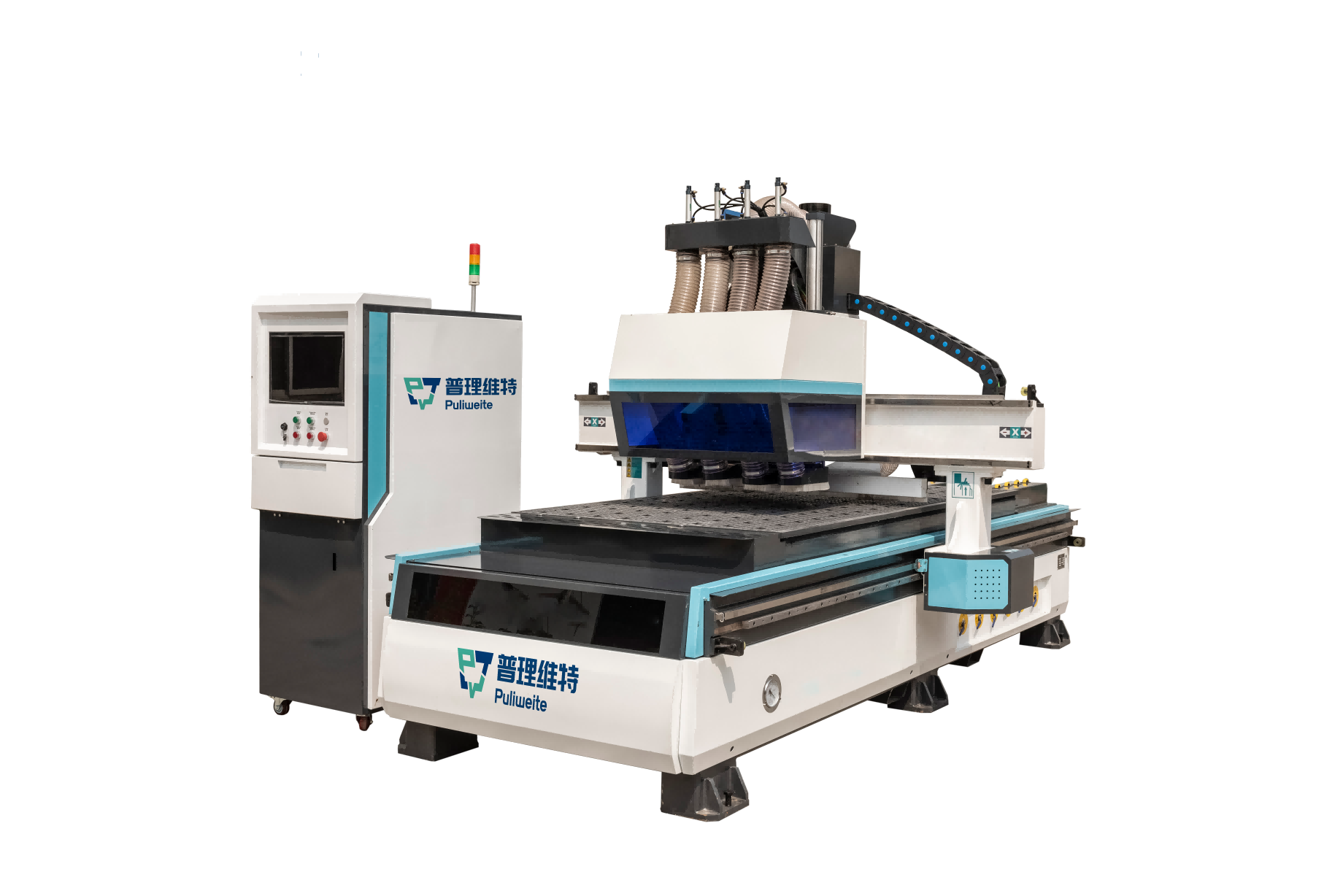

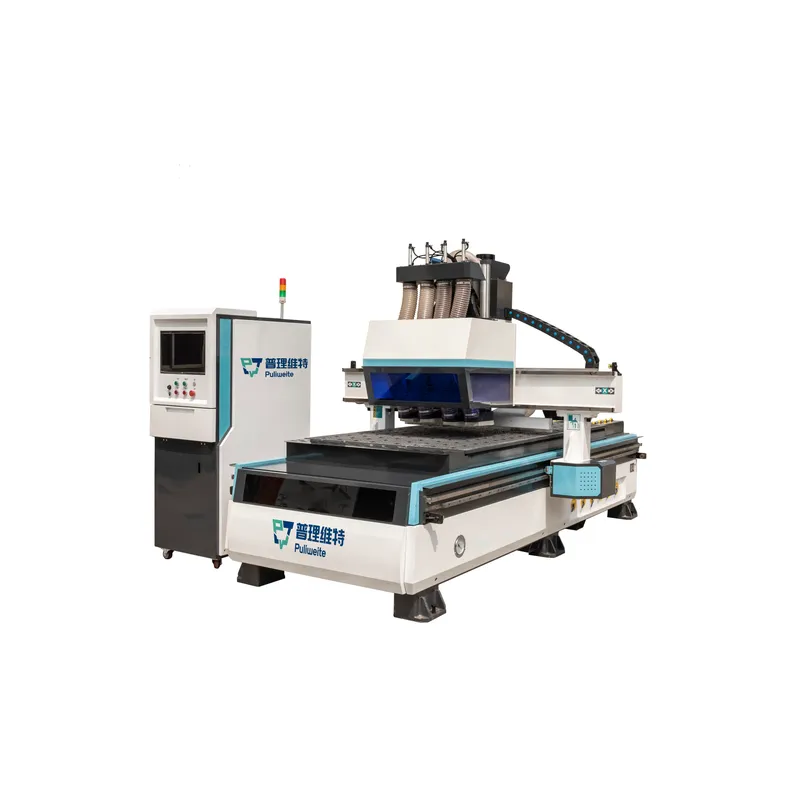

Two table act cnc with four spindle
◣Performance Characteristics
The whole model bed adopts steel structure seamless welding and tempering aging treatment, which hasstrong rigidity and no deformation.
Using Super Star exclusive custom servo drive system, fast speed and high precision.
The follow-up automatic tool change system has a tool magazine capacity of 12, saving tool change time and improving production efficiency.

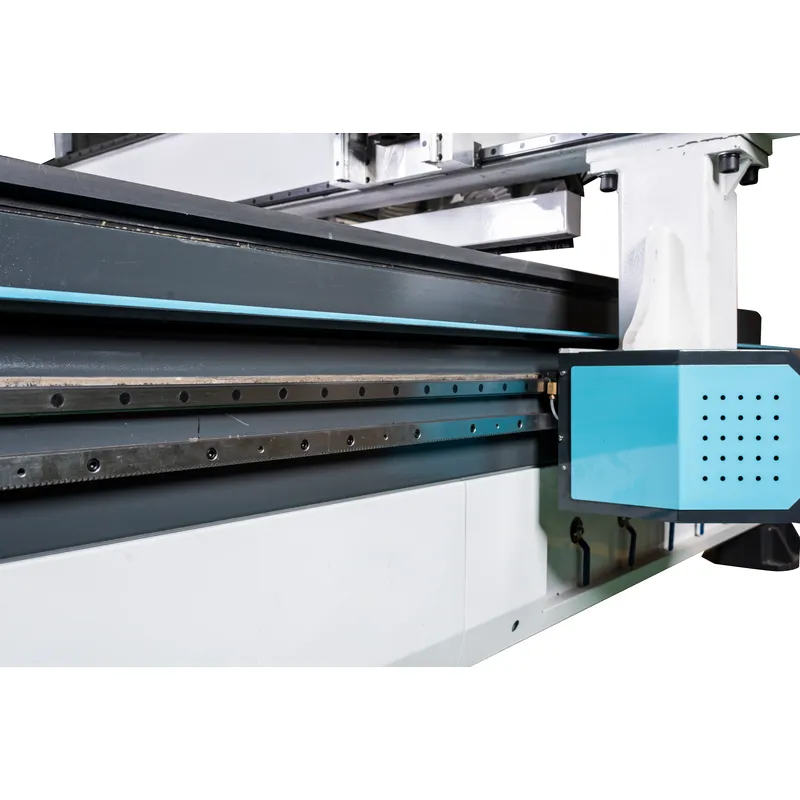

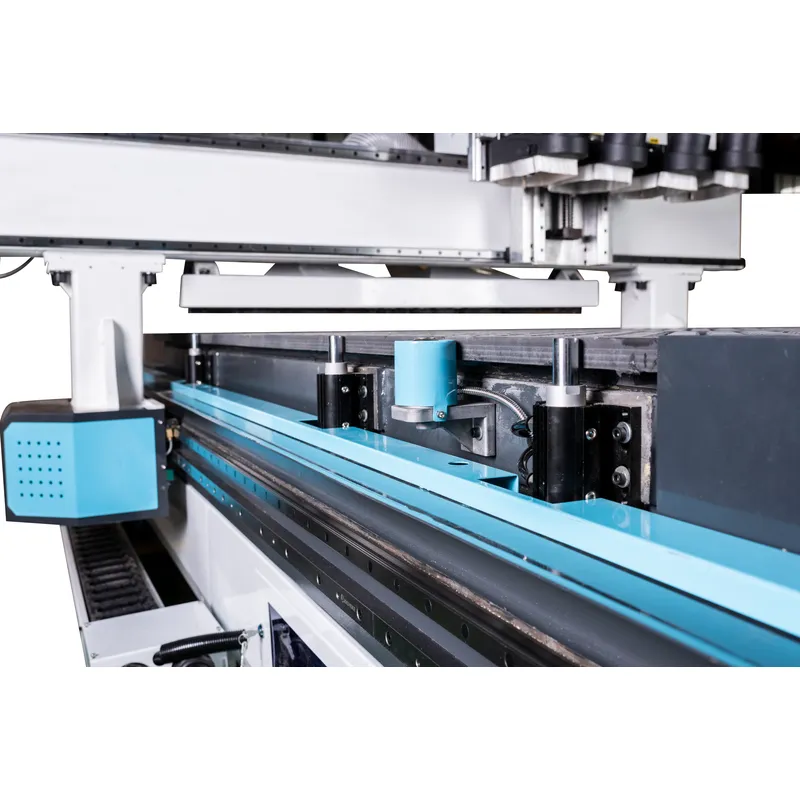

Super Star custom 30 square rail, double row four row ball slider, large bearing capacity, stable operation,high precision and long life. Double nut ball screw with high precision and precise undercut.
Model | PLWT-P4 |
Gantry | Generous tube beam structure |
Drive system | Servo moter system |
Spindle speed | 40000rpm/min |
Transmission mode | Lead screw + helical teeth |
Rail | Taiwan straight square rail 30 series |
Warranty | One year warranty for the entire machine |
Accuracy | Repeat positioning 0.05mm |
Compatible software | It can interface with Yunxi, Haixun, Ewood and 1010, etc |
Scope of application | Engraving cabinet doors,wardrobe doors,slotting,cutting,modeling, etc |
Lubrication | Automatic oiling system |
frequency converter | 11kw Bested/Shanghai Fuling |
Drives | Leisai 1500w motor matching drive |

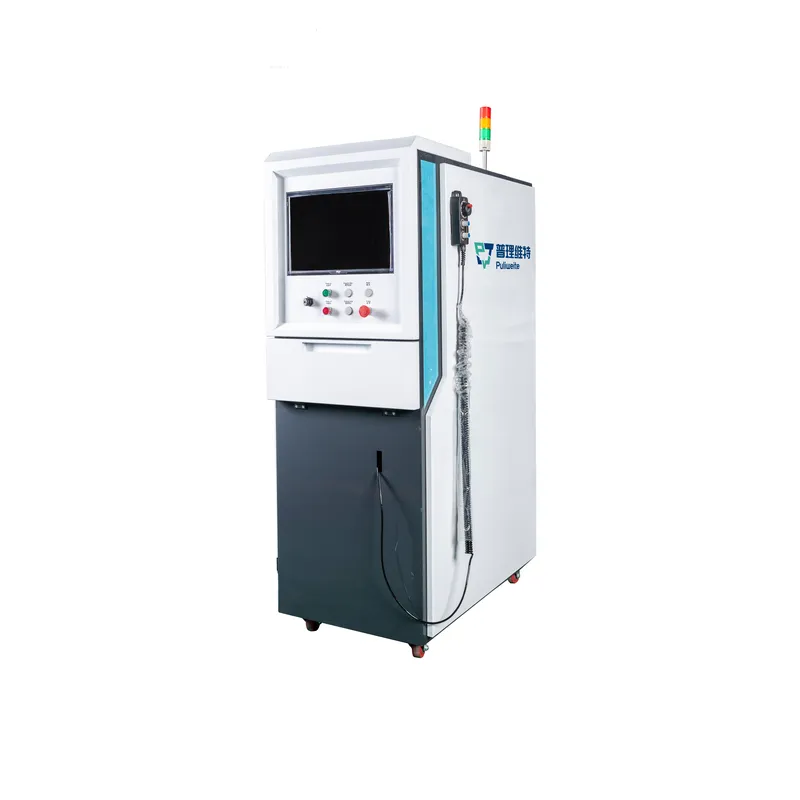

Operating Systems | Weihong control system |
Motors | 9kw automatic tool change spindle |
Tabletop | Vacuum adsorption( integrated suction clamp ) |
Vacuum pump | 7.5kw water-cooled vacuum pump |
Input Voltage | 220V/380V |
Operating instructions | G Code(*.nc.*.mmg.*.u00.etc.).*eng |
Working stroke | 1300mm*2800mm |
01 Engraving doors 02 Modeling 03 Slotting 04 Slotting
