high speed engraving

Description

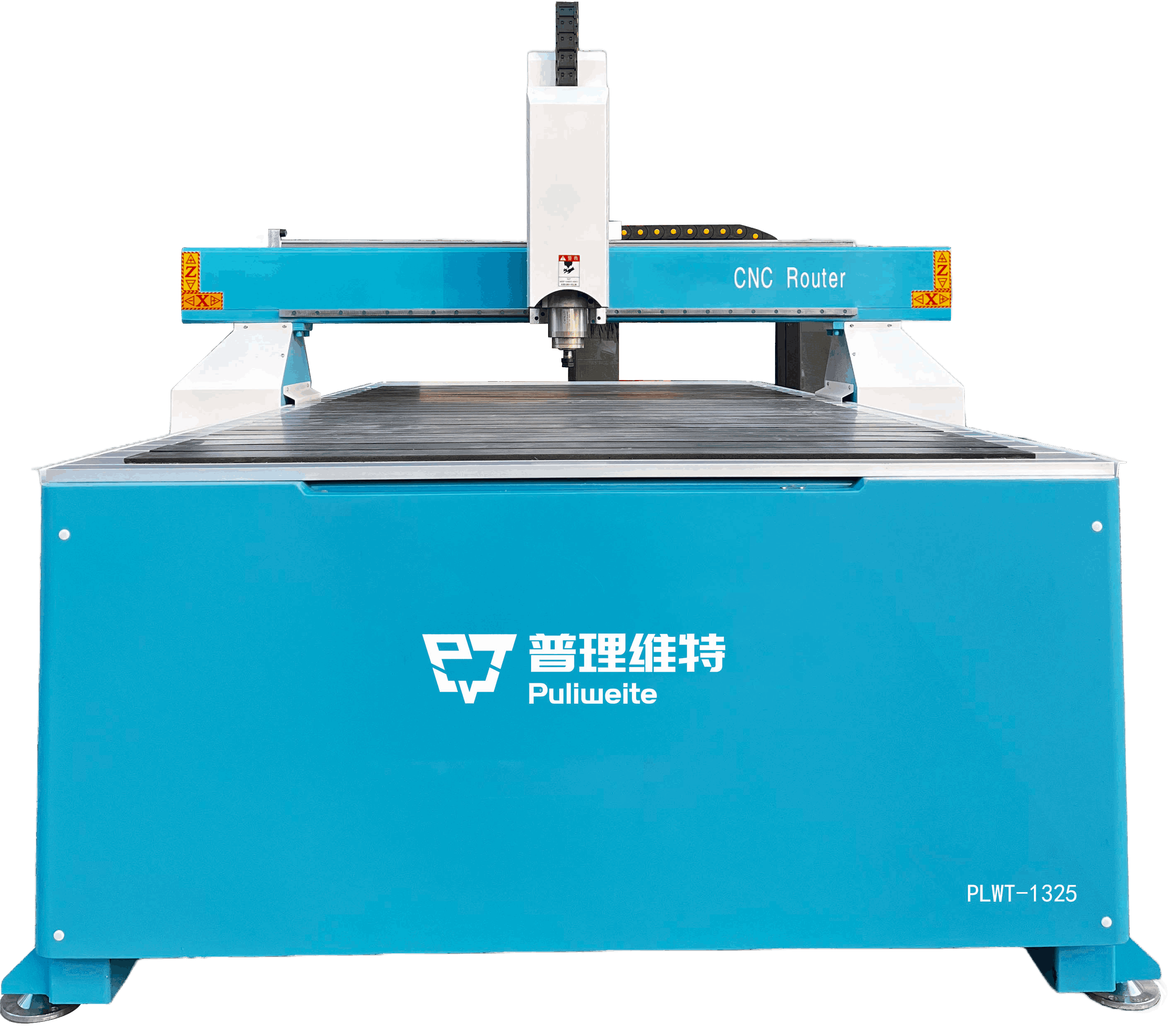

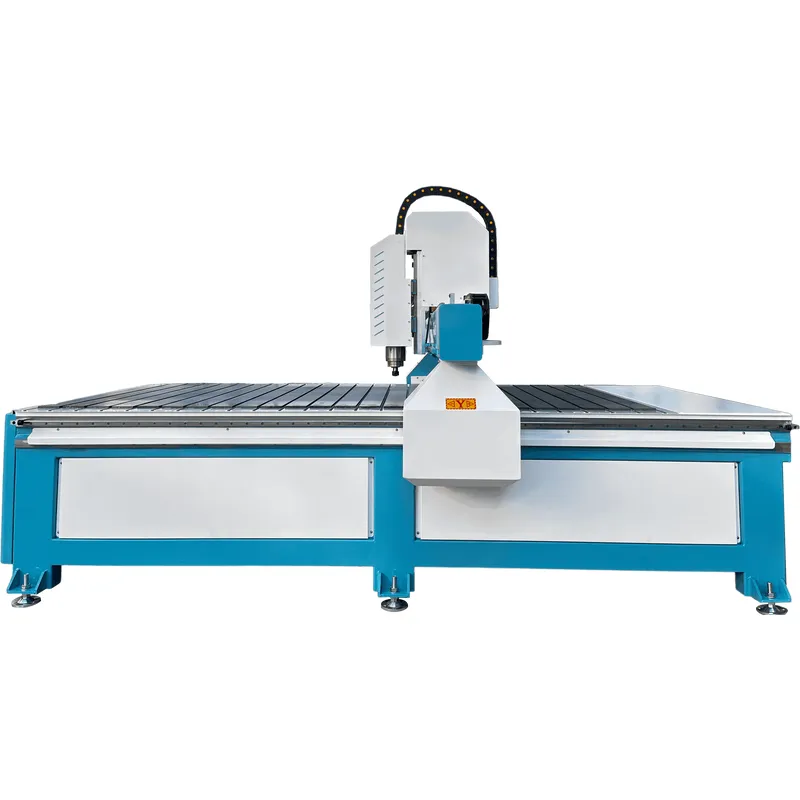

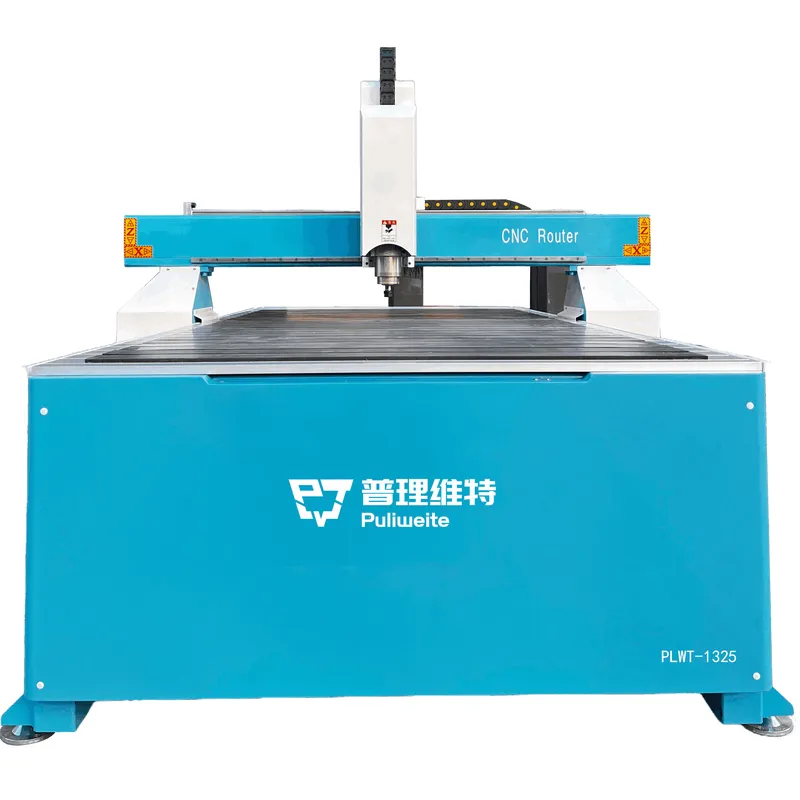

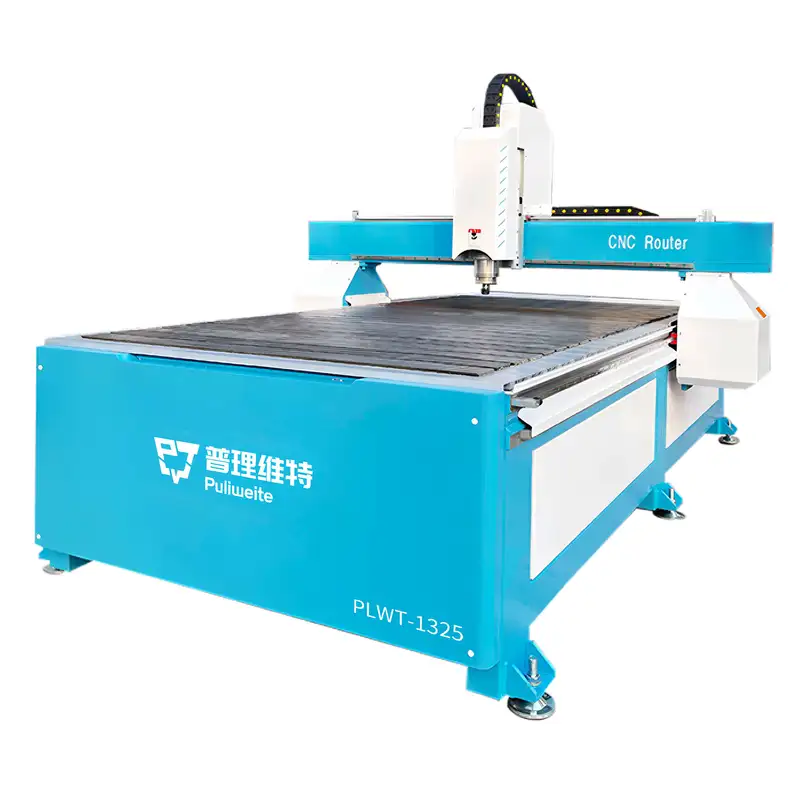

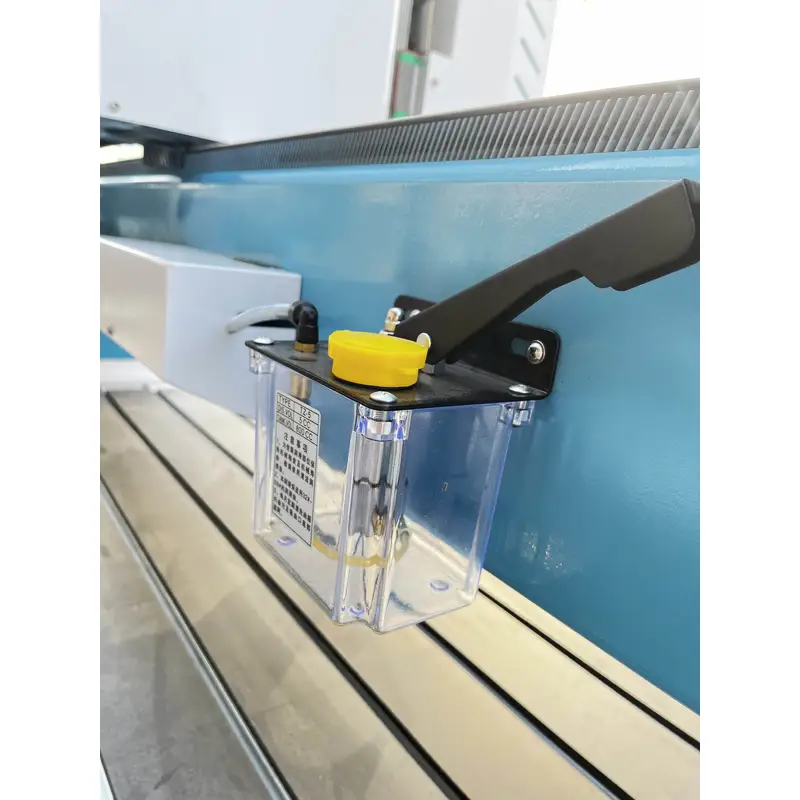

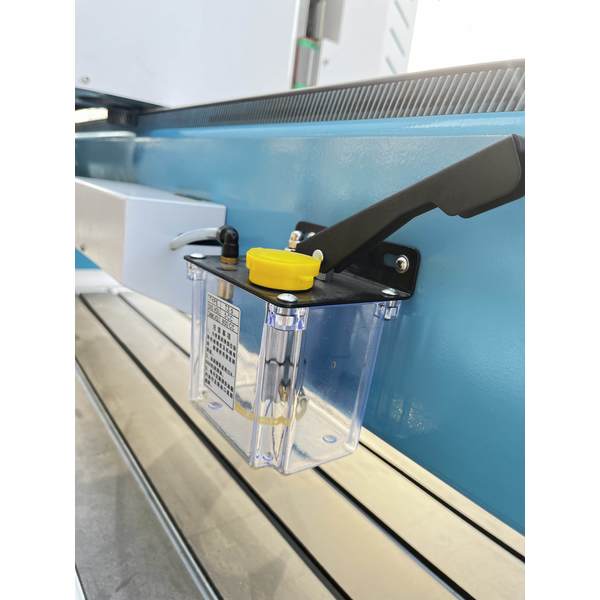

T1-1325 engraving machine


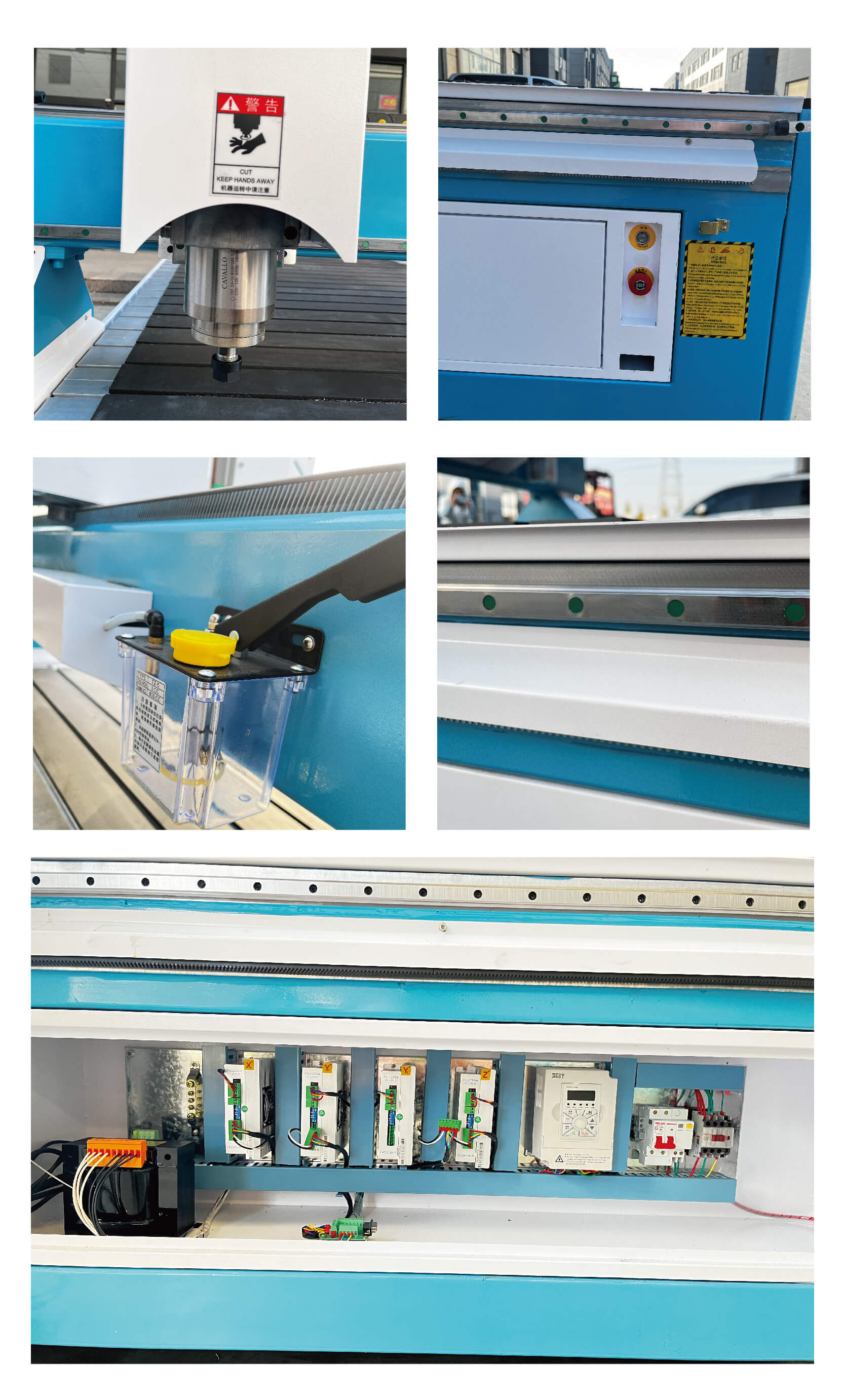

◣Performance Characteristics

1.The whole machine body is made from steel seamless welding tempering aging treatment, rigid, no deformation.

2.Stepping motor and driver, high precision, high speed.

3.square rail guide, smooth operation, high precision, long life.

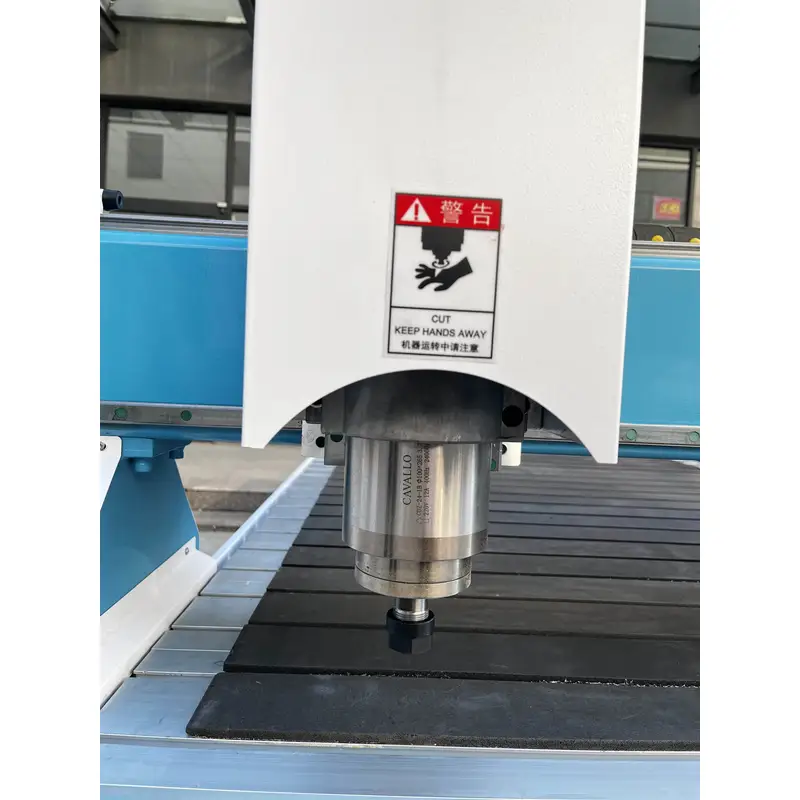

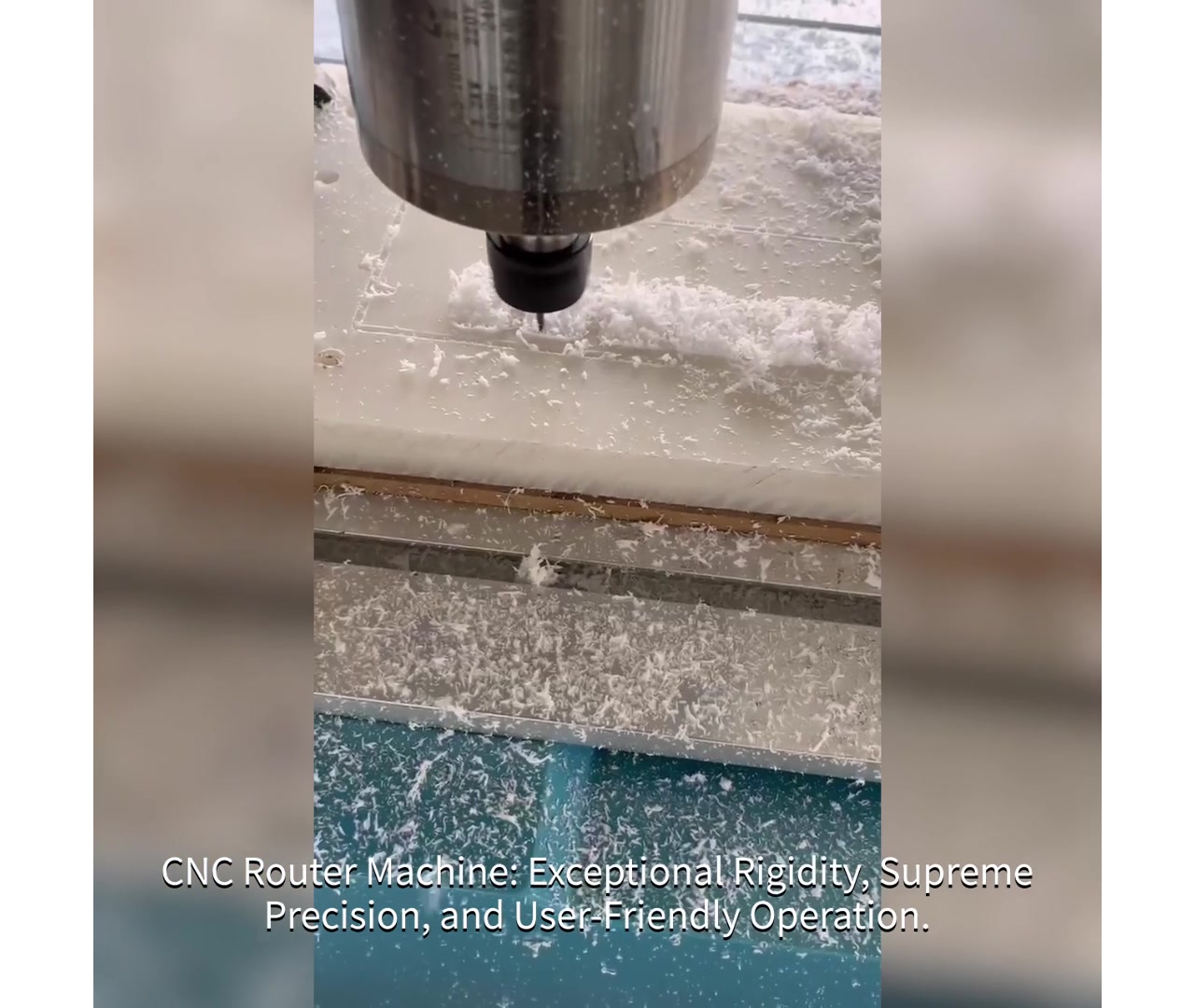

4.water-cooling spindle, long power life, high speed, carved smooth surface.

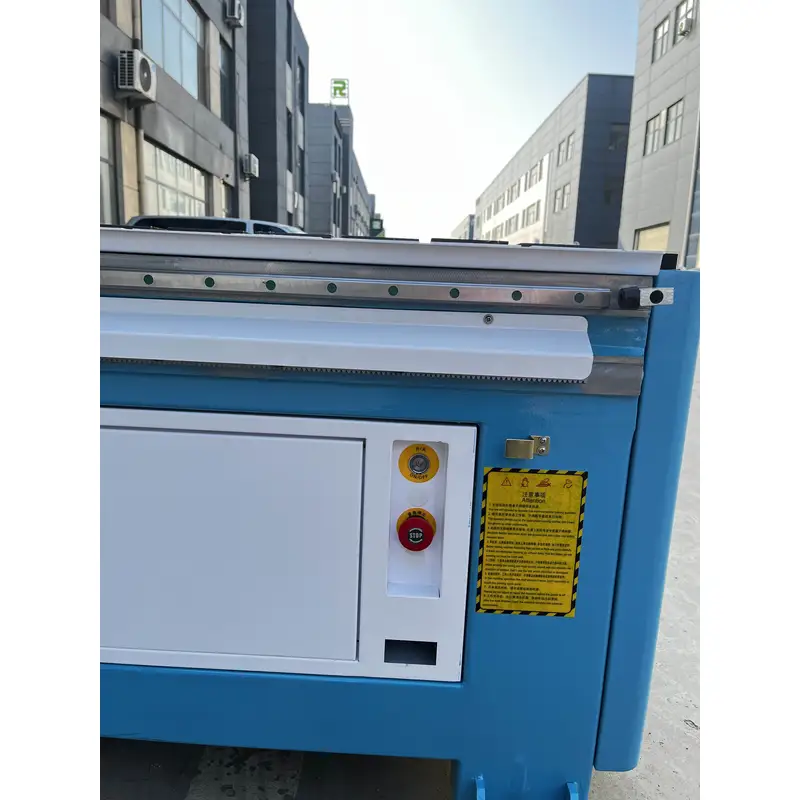

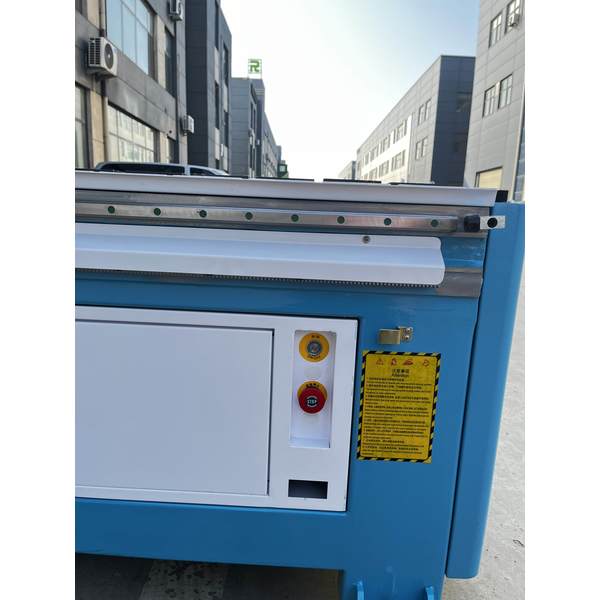

5.Industrial grade anti-interference all-in-one cabinet, simple and easy to use.

◣Technical Parameters

Gantry	Square tube large gantry cast iron side plate
Spindle power	3.2KW water-cooled
Spindle speed	6000-24000rpm

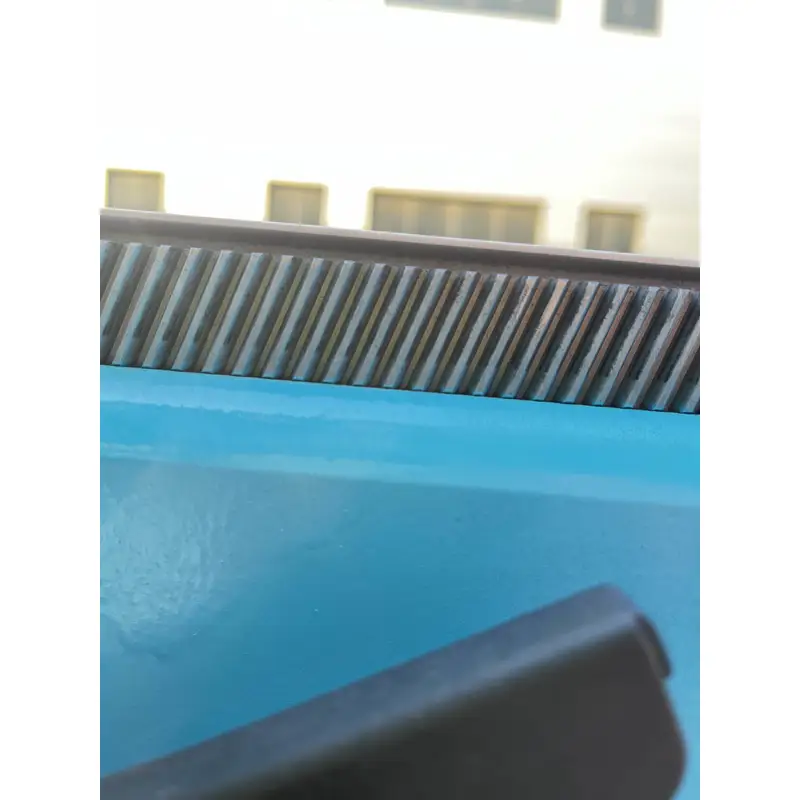

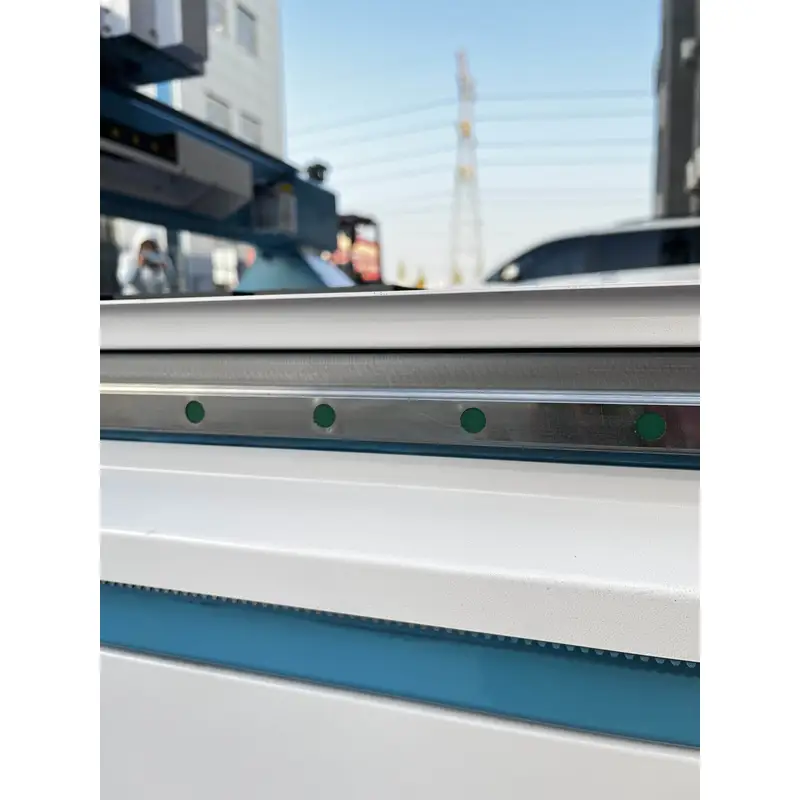

Transmission mode	Square rail + helical teeth
Rail	20# guide rail
Warranty	One year warranty for the entire machine
Accuracy	Repeat positioning 0.02mm
Compatible software	CAD/CAM software that can generate G-code in Windows98/Xp/7 environment
Scope of application	Carving and cutting: acrylic, PVC, wooden boards, etc.
Dimensions	*1960mm3100mm1700mm*
Drives	Stepper drive
Operating Systems	Weihong system
Motors	450 motor
Tabletop	Aluminum profile
Chassis	Built in chassis
Input Voltage	220V/380V
Operating instructions	*G Code(.nc..mmg..uOO.etc.).eng*
Working stroke	*1300mm2500mm200mm*

◣Optional Configurations

Component	Optional Configuration
XYZ Axis Rail	20#, 25#, 30#
System	NC5.449 from General Weihong Card, Genuine Weihong 95A, Xingduowei Small Card, MACH 3
System-DSP Handle	Rui Zhi Tian Hong A11, Xingduowei Handle
Edge Tracing System	Xingduowei / Leyu Makke / BNC
Rotary Axis Diameter	10cm, 2-15cm, 20-30cm, 30-40cm, 50cm
Rotary Axis Length	1.2m, 1.6m, 1.8m, 2m, Custom
Motors	450(A B C) Step Motors, Yankong S3 Hybrid Servo Motors/Leisai 758 Hybrid Servo Motors, Hui Chuan AC Servo Motors, Yankong AC Servo Motors, Ankuan AC Servo Motors, Jiemeikang AC Servo Motors Normal screw machine motors are 3 sets, rack and pinion machines are 4 sets. Standard 750W.Often used in conjunction with a speed reducer.
Worktable	Standard Worktable Machine (Aluminum Profile) Worktable with Vacuum Pump Adhesion 5.5KW/7.5KW Air-cooled Pump, 5.5KW/7.5KW Water-cooled Pump, Shell Pump Ordinary countertop machine (aluminum profile) Add vacuum pump to adsorb the countertop, suction and clamping in one: 5.5KW/7.5KW air-cooled pump, 5.5KW / 7.5KW water-cooled pump / Shell Pump Pressure roller of the shaft presser: collar/glue covered Vacuum cleaner : 2.2KW / 3KW , double cylinder /single cylinder
Cooling (Metal/Stone Optional)	Stainless Steel Sink, Oil Mist Collector
Spindle	Standard 3.2KW Water-cooled, Optional: Water-cooled 5.5KW 7.5KW 2.2KW 1.5KW, Air-cooled 4.5KW 6KW 7.5KW 9KW
Machine Processing Size	Standard 1325mm, Custom sizes: 1530mm, 2030mm, 1212mm and other non-standard.
Head Modification	According to customer industry requirements: Independent Head, Single-head with Multi-head, Pneumatic Multi-head
