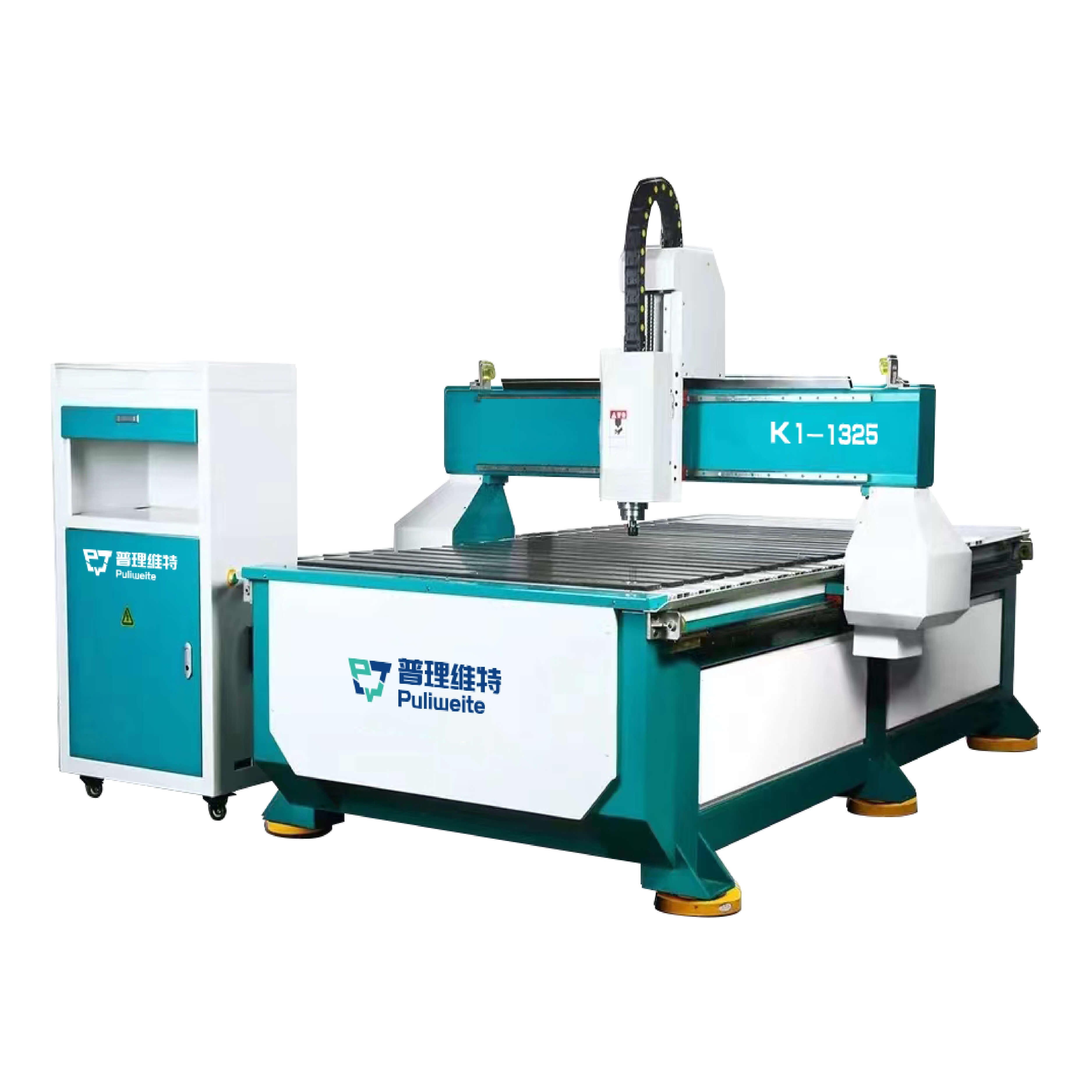

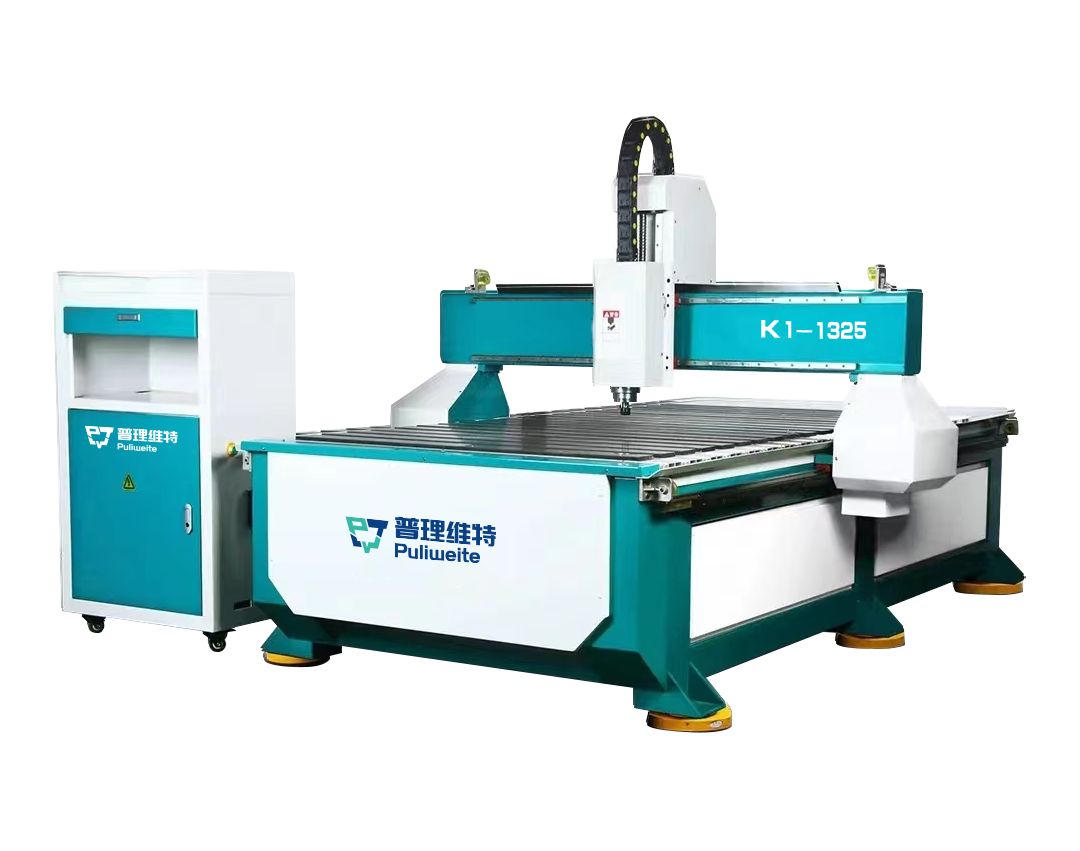

K1 High-speed engraving machine
◣Performance Characteristics
1.The whole machine body is made from steel seamless welding tempering aging treatment, rigid, no deformatior.
2.Stepper motor and driver, high precision and high speed.
3.square rail guide, srooth operation, high precision, long life.
4.water-cooling spindle, long power life, high speed,carved smooth surface
5.Large eauipped with a separate cabinet,split kevboard ooeratiei, split keyboard operation,simple and convenient, easy to learn.
◣Technical Parameters
Model | PLWT-K1 |
Gantry | Square tube large gantry cast iron side plate |

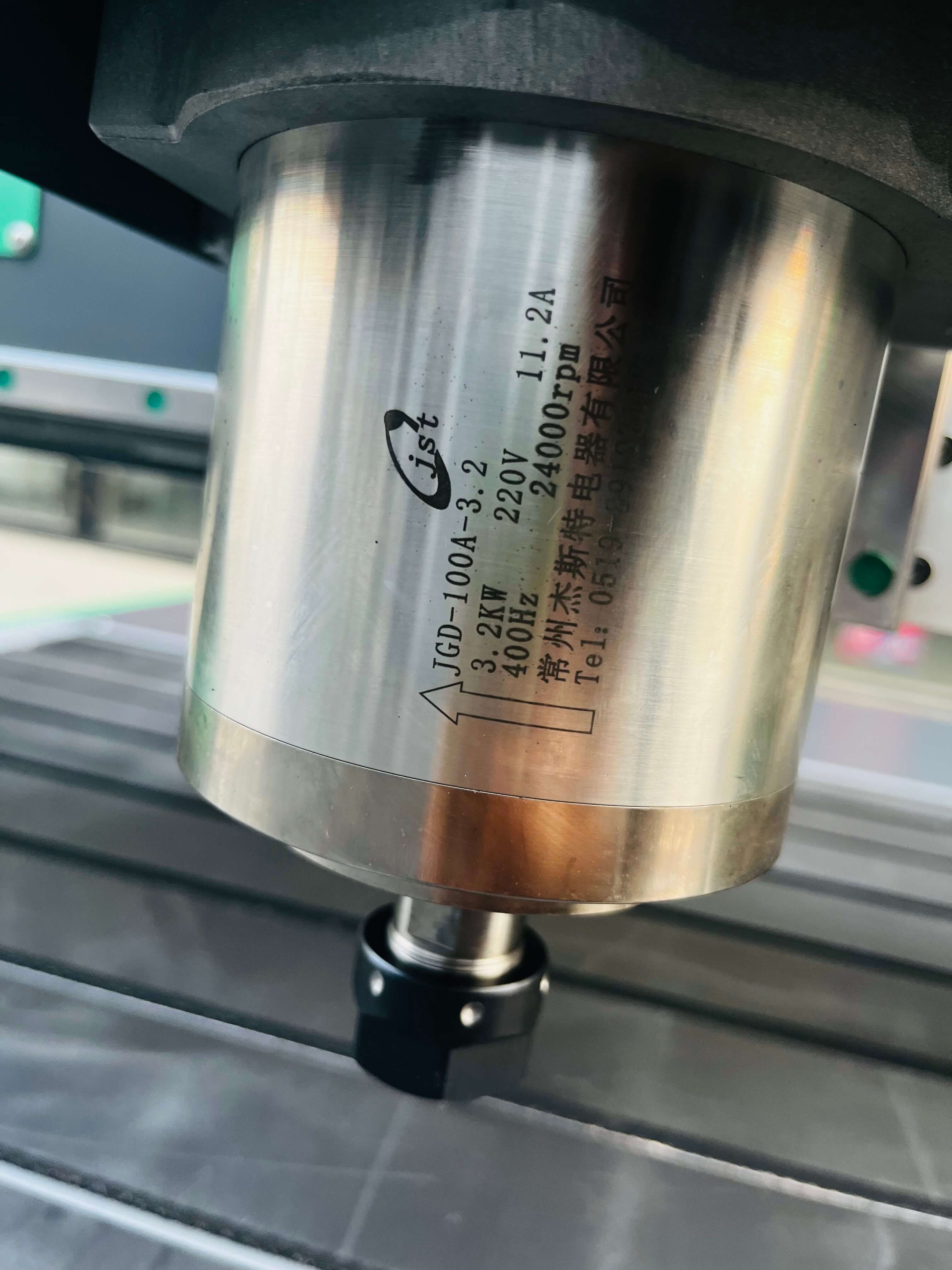

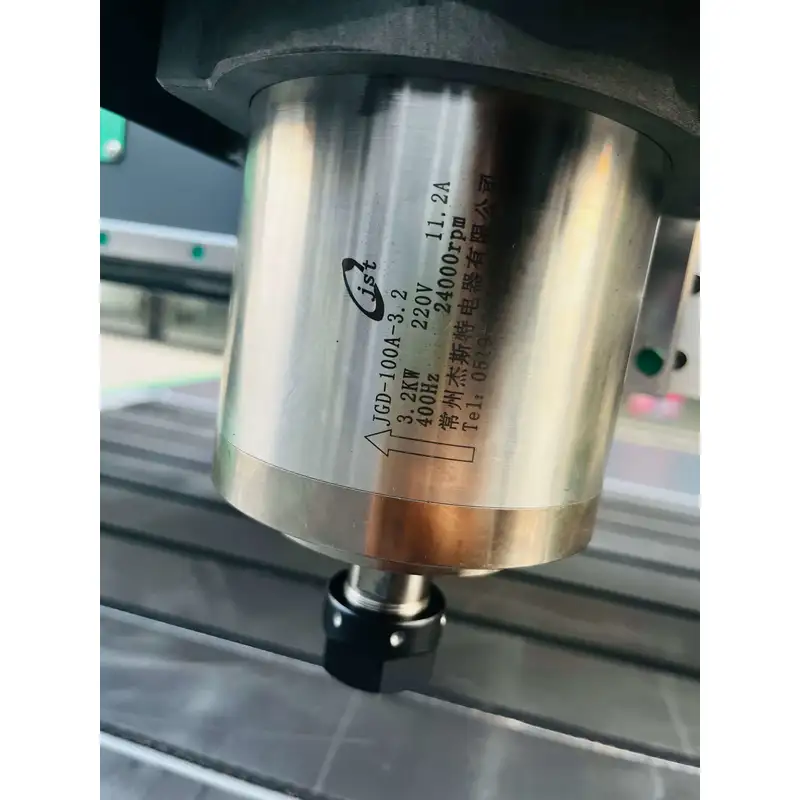

Spindle power | Jester 3.2KW water-cooled |
Spindle speed | 6000-24000rpm |
Transmission mode | Square rail + helical teeth |
Rack | 1.5M helical teeth |
Warranty | One year warranty for the entire machine |
Accuracy | Repeat positioning 0.01mm |
Compatible software | Windows98/Xp/7GCAD/CAM CAD/CAM software that can generate G-code in Windows98/Xp/7 environment |
Scope of application | Carving and cutting: acrylic, PVC, wooden boards, etc. |
Dimensions | 2100mm*3100mm*1700mm |
frequency converter | Fuling |
Drives | Advantech 2D68 drives |
Operating Systems | Weihong system |
Motors | 450 Large motor |
Tabletop | Thickened aluminum sheet |
Chassis | Industrial grade anti-interference large cabinet |
Input Voltage | 220V/380V |
Operating instructions | G Code(*.nc.*.mmg.*.u00.etc.).*eng |
Working stroke | 1300mm*2500mm*200mm |
◣Optional Configurations
Component | Optional Configuration |
XYZ Axis Rail | 20#, 25#, 30# |
System | NC5.449 from General Weihong Card, Genuine Weihong 95A, Xingduowei Small Card, MACH 3 |
System-DSP Handle | Rui Zhi Tian Hong A11, Xingduowei Handle |
Edge Tracing System | Xingduowei / Leyu Makke / BNC |
Rotary Axis Diameter | 10cm, 2-15cm, 20-30cm, 30-40cm, 50cm |
Rotary Axis Length | 1.2m, 1.6m, 1.8m, 2m, Custom |
Motors | 450(A B C) Step Motors, Yankong S3 Hybrid Servo Motors/Leisai 758 Hybrid Servo Motors, Hui Chuan AC Servo Motors, Yankong AC Servo Motors, Ankuan AC Servo Motors, Jiemeikang AC Servo Motors Normal screw machine motors are 3 sets, rack and pinion machines are 4 sets. Standard 750W.Often used in conjunction with a speed reducer. |
Worktable | Standard Worktable Machine (Aluminum Profile) Worktable with Vacuum Pump Adhesion 5.5KW/7.5KW Air-cooled Pump, 5.5KW/7.5KW Water-cooled Pump, Shell Pump Ordinary countertop machine (aluminum profile) Add vacuum pump to adsorb the countertop, suction and clamping in one: 5.5KW/7.5KW air-cooled pump, 5.5KW / 7.5KW water-cooled pump / Shell Pump Pressure roller of the shaft presser: collar/glue covered Vacuum cleaner : 2.2KW / 3KW , double cylinder /single cylinder |
Cooling (Metal/Stone Optional) | Stainless Steel Sink, Oil Mist Collector |
Spindle | Standard 3.2KW Water-cooled, Optional: Water-cooled 5.5KW 7.5KW 2.2KW 1.5KW, Air-cooled 4.5KW 6KW 7.5KW 9KW |
Machine Processing Size | Standard 1325mm, Custom sizes: 1530mm, 2030mm, 1212mm and other non-standard. |
Head Modification | According to customer industry requirements: Independent Head, Single-head with Multi-head, Pneumatic Multi-head |
◣Samples

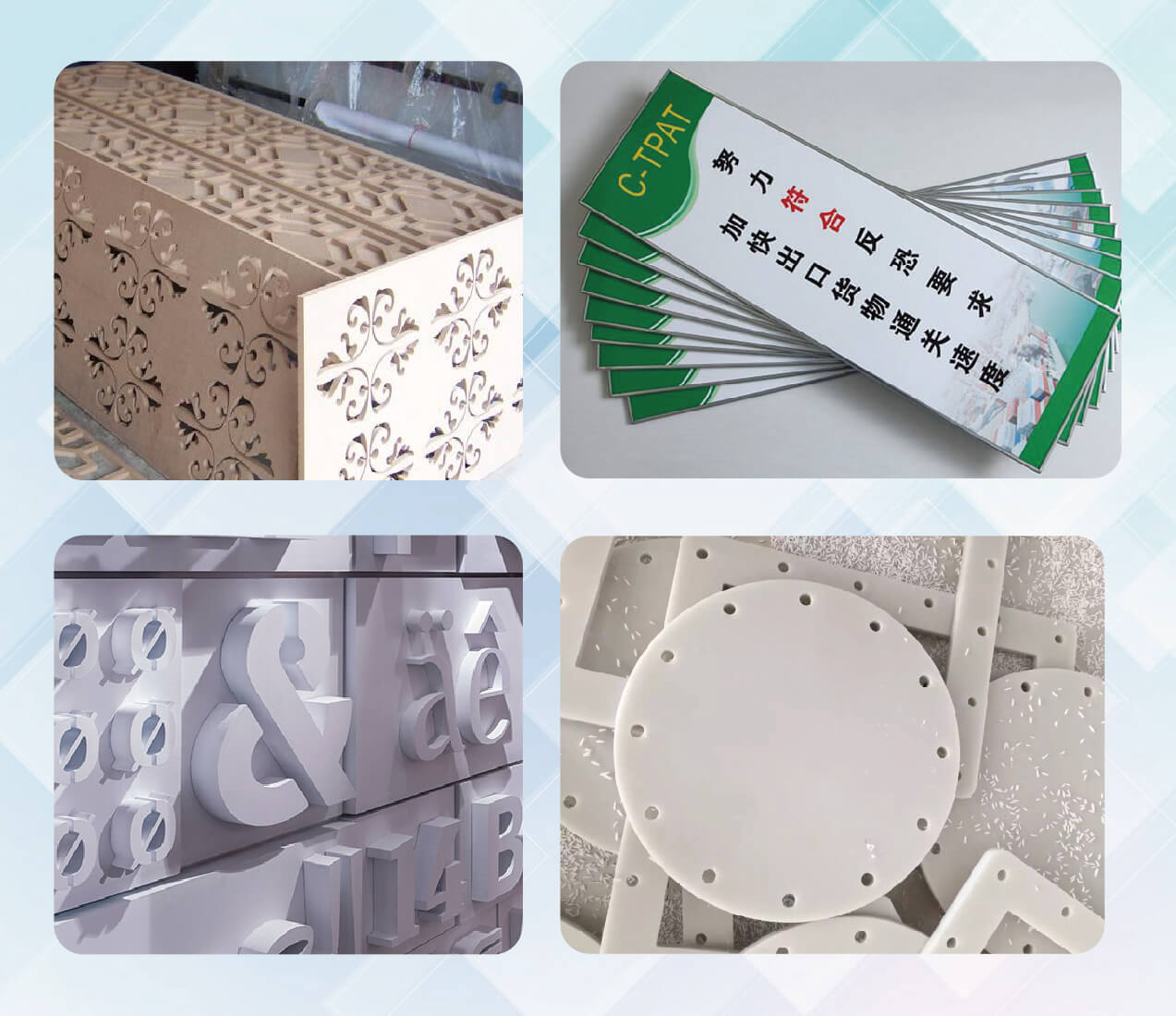

01 Wood 02 KT board 03 PVC font 04 Epoxy parts
