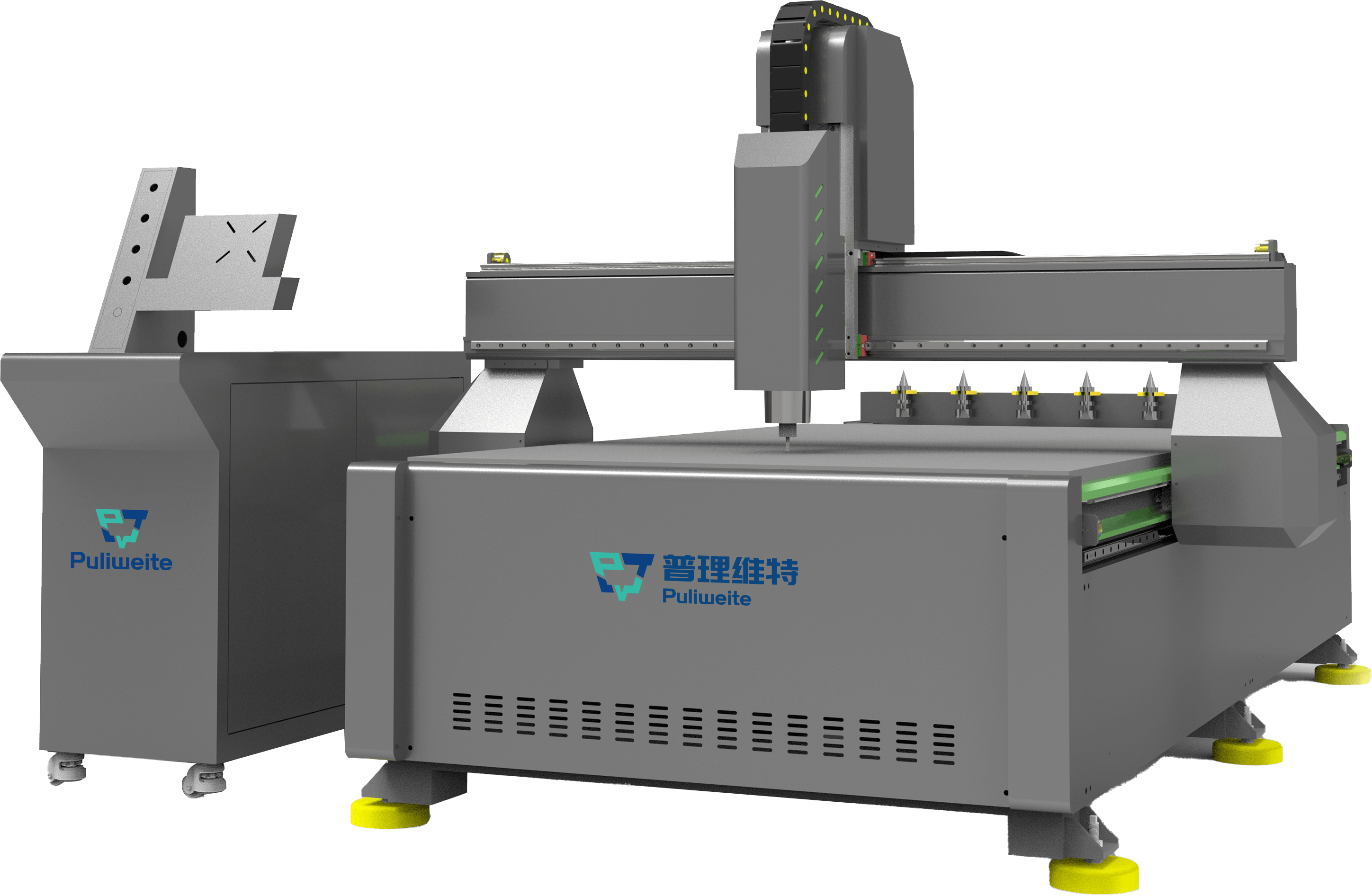

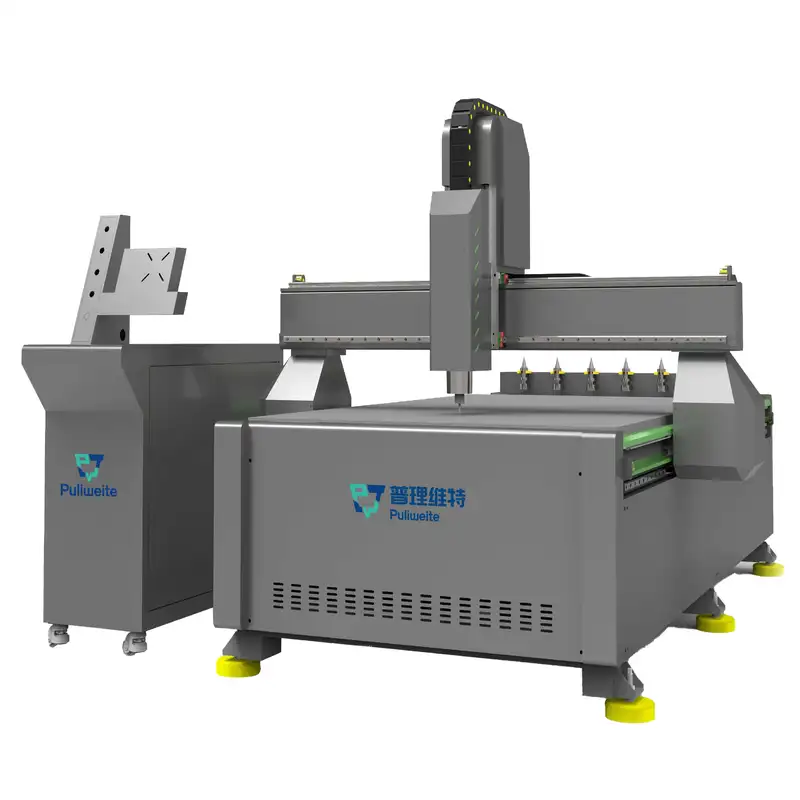

H5 High-speed engraving machine
◣Performance Characteristics
1.The whole machine body is made from steel seamless welding tempering aging treatment ,good rigidity ,no deformation
2.Servo motor and drive, high precision and high speed.
3.square rail guide, smooth operation, high precision, long life.

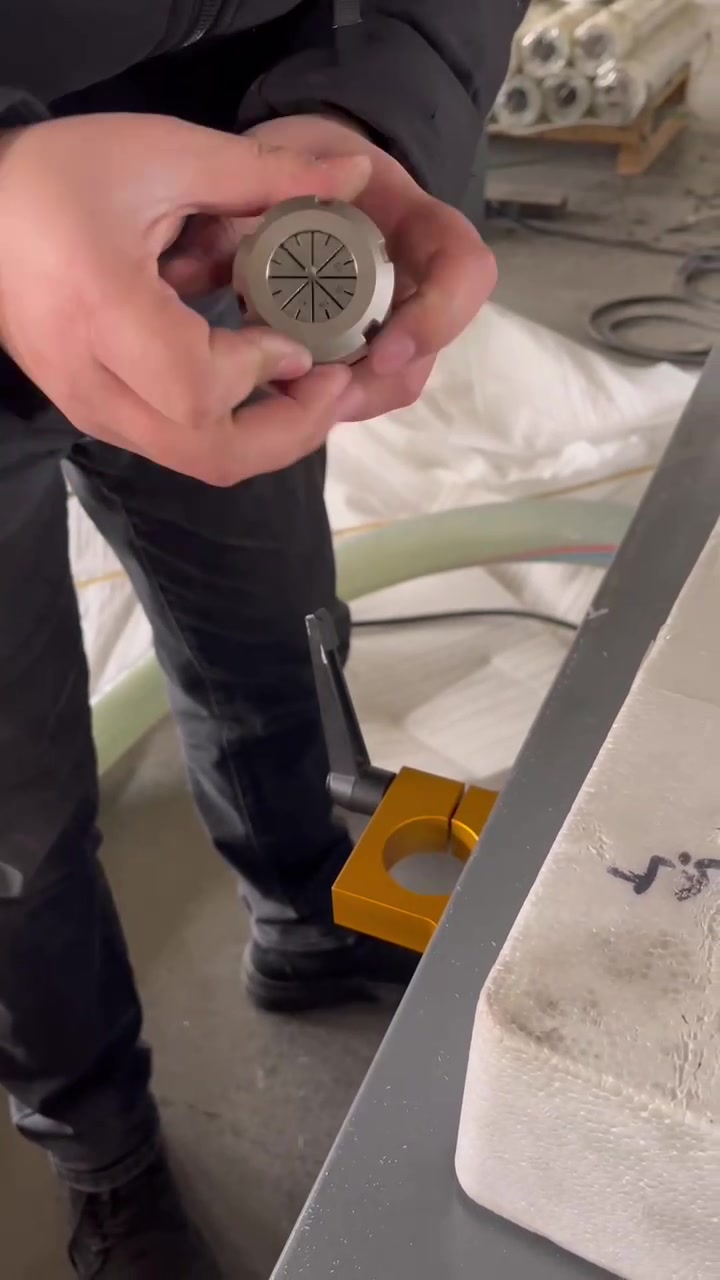

4.Automatic tool changing spindle, saving time and cost, and more efficient.
5.Industrial grade anti-interference independent cabinet, simple and convenient, easy to use.
◣Technical Parameters
model | PLWT-H5 |
Overalldimensions | 2100*3100mm*1500mm |
Work itinerary | 1300*2500*200mm |
Longmen | Square tube large gantry cast iron side plate |
Spindle power | Huadiao 5.5 constant power tool changing spindle |
Spindle speed | 24000rpm |
Transmission mode | 2M high-precision rack and pinion |
Guide | 25 Square rails |
Frequency converter | Beishide frequency converter |
Driver | 750W drive |
Operating system | Xingduowei system |
Electric machinery | 750W AC servo motor+reducer |
Mesa | Integrated vacuum adsorption and clamping |
Chassis | Industrial grade anti-interference large cabinet |
Input voltage | 220V/380V |
Accuracy | Repeated positioning 0.01m m |
Applicable scope | Industrial cutting of luminous characters, advertising signs, mini characters, copper aluminum, and epoxy resin sheets |
◣Optional Configurations
Component | Optional Configuration |
XYZ Axis Rail | 20#, 25#, 30# |
System | NC5.449 from General Weihong Card, Genuine Weihong 95A, Xingduowei Small Card, MACH 3 |
System-DSP Handle | Rui Zhi Tian Hong A11, Xingduowei Handle |
Edge Tracing System | Xingduowei / Leyu Makke / BNC |
Rotary Axis Diameter | 10cm, 2-15cm, 20-30cm, 30-40cm, 50cm |
Rotary Axis Length | 1.2m, 1.6m, 1.8m, 2m, Custom |
Motors | 450(A B C) Step Motors, Yankong S3 Hybrid Servo Motors/Leisai 758 Hybrid Servo Motors, Hui Chuan AC Servo Motors, Yankong AC Servo Motors, Ankuan AC Servo Motors, Jiemeikang AC Servo Motors Normal screw machine motors are 3 sets, rack and pinion machines are 4 sets. Standard 750W.Often used in conjunction with a speed reducer. |
Worktable | Standard Worktable Machine (Aluminum Profile) Worktable with Vacuum Pump Adhesion 5.5KW/7.5KW Air-cooled Pump, 5.5KW/7.5KW Water-cooled Pump, Shell Pump Ordinary countertop machine (aluminum profile) Add vacuum pump to adsorb the countertop, suction and clamping in one: 5.5KW/7.5KW air-cooled pump, 5.5KW / 7.5KW water-cooled pump / Shell Pump Pressure roller of the shaft presser: collar/glue covered Vacuum cleaner : 2.2KW / 3KW , double cylinder /single cylinder |
Cooling (Metal/Stone Optional) | Stainless Steel Sink, Oil Mist Collector |
Spindle | Standard 3.2KW Water-cooled, Optional: Water-cooled 5.5KW 7.5KW 2.2KW 1.5KW, Air-cooled 4.5KW 6KW 7.5KW 9KW |
Machine Processing Size | Standard 1325mm, Custom sizes: 1530mm, 2030mm, 1212mm and other non-standard. |
Head Modification | According to customer industry requirements: Independent Head, Single-head with Multi-head, Pneumatic Multi-head |
◣Samples
