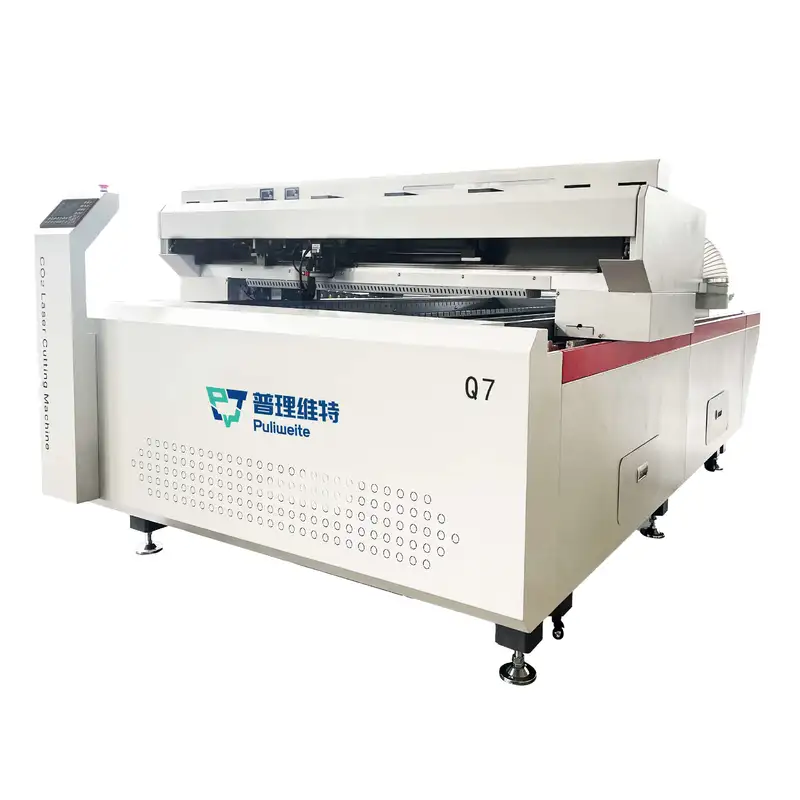

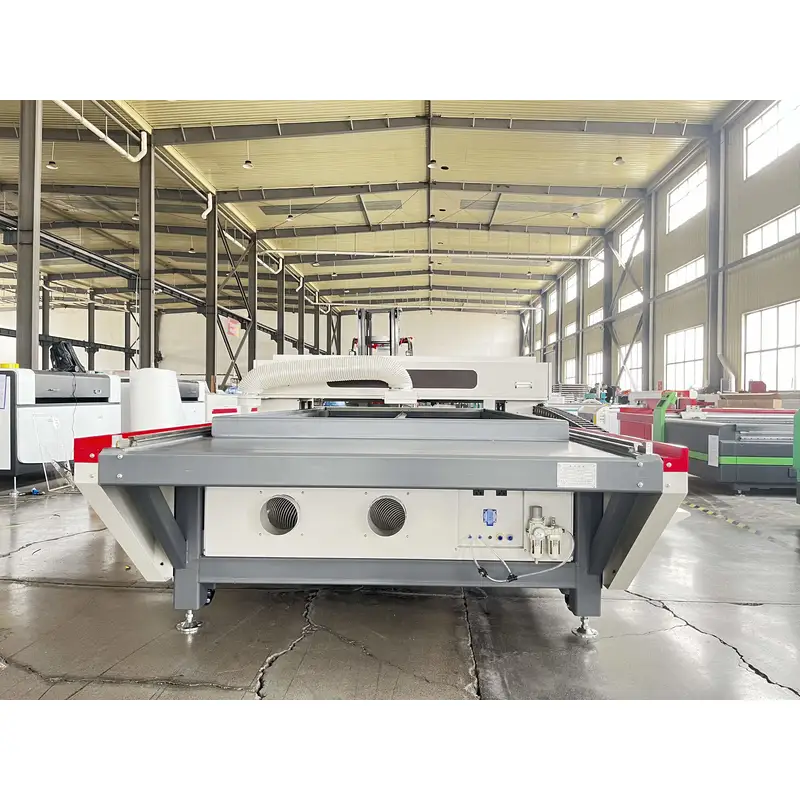

Q7-1325 Laser Machine
◣Performance Characteristics
1. Upper and lower double exhaust smoke without odor.
2. Constant light path cutting, mirror effect.
3. Choose high speed motor and driver, 24 hours long time running without losing steps.
4. Humanized design makes you more flexible in production and processing.
5. Rack and pinion drive, fast speed, high precision, wear-resistant.
◣Technical Parameters
model | Q7-1325 |
Dimensions | 2200*3500*1500mm |
Stroke | 1300*2500*100mm |
Gantry | Square tube large gantry cast iron side plate |
laser tube | Chengdu macro laser tube |
Laser tube power | 150W-500W |
Transmission mode | High precision rack+square rail |
rail | 20 # square rail |
One year warranty | Equipment warranty one year laser tube warranty ten months |
Compatible software | Coreldraw, AutoCAD, JDpaint, PS, Al and other software |
Working table | Knife worktable |
Running speed | 5-200mm/s |
working voltage | 220V |
Operating system | CCD system |
Drive system | high-precision motor + reducer |
accuracy | 0.01mm Repeated positioning 0.01mm |
Temperature requirements | 5℃-35℃ |
Control cabinet | Industrial anti-interference cabinet |

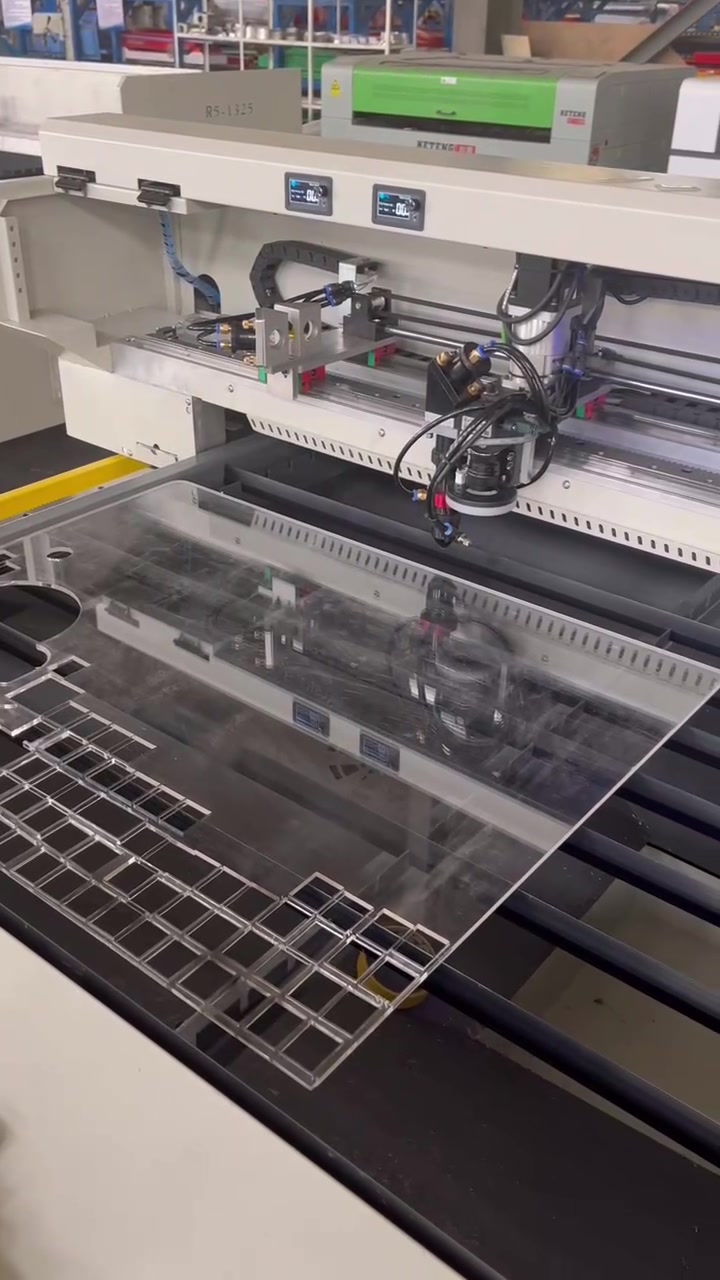

scope of application | Edge patrol cutting, UV, acrylic, photo frame, wood board, Paper Cuttings, leather, felt. |
◣Samples
01 Packaging paper carving 02 Light guide plate 03 Leather carving 04 Wood carving

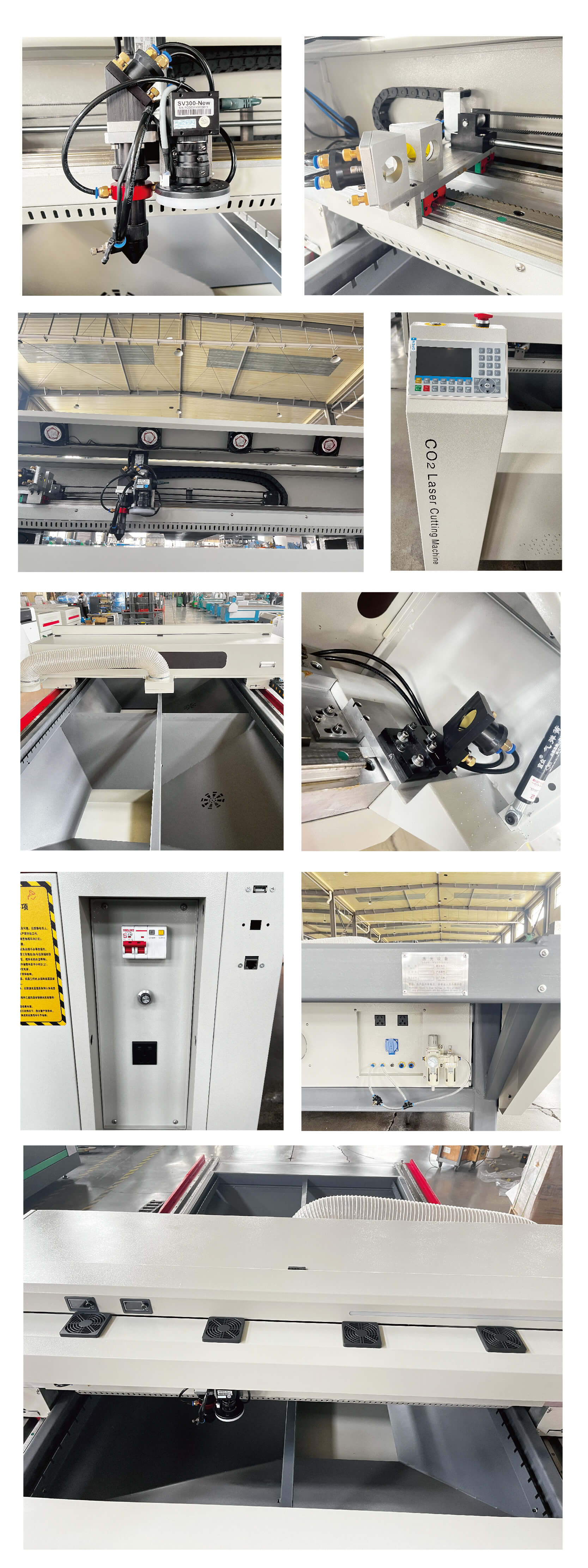

◣Product Detail
