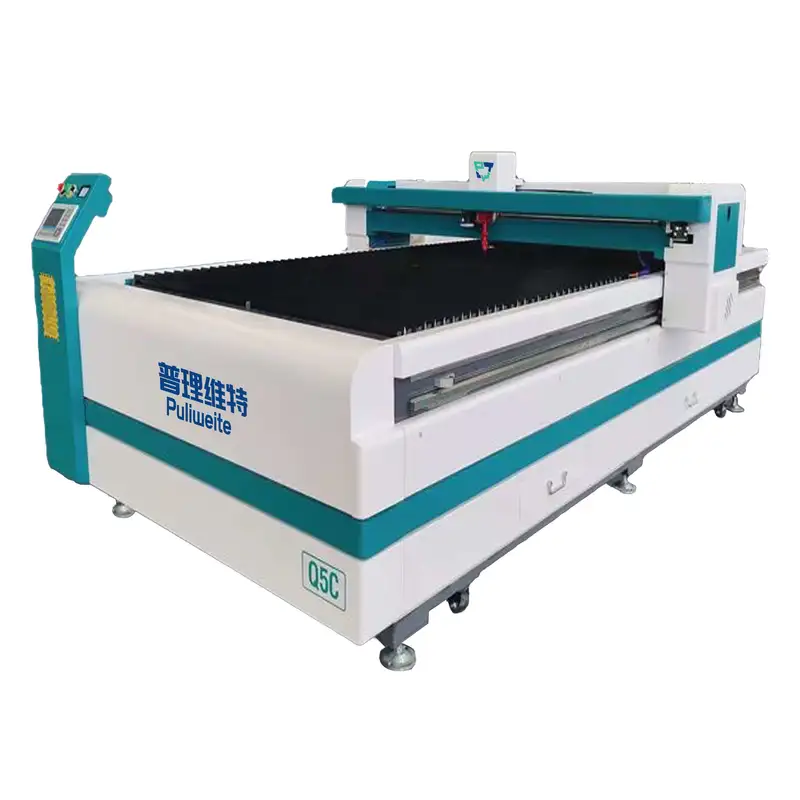

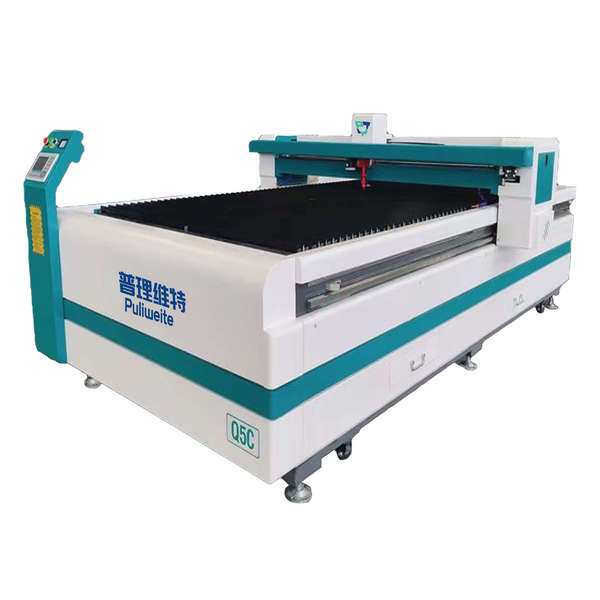

Q5C-1325 laser machine
◣Performance Characteristics
1.Touch screen control system, USB offline use, more convenient to use, add breakpoint continuation function.
2.The software is compatible with CorelDraw, AutoCAD, Photoshop and all kinds of graphic processing software.
3.Directly original output function, none error.
4.Choose high-speed motor and driver. 24 hours long time running without losing step.
5.The humanized design makes you more flexible in production and processing.
6.Adopting high quality belt drive, fast speed, high precision and wear-resistant.
◣Technical Parameters
model | Q5C-1325 |
Dimensions | 2100*3300*1100mm |
Stroke | 1300*2500*100mm |
Gantry | Square tube large gantry cast iron side plate |
laser tube | CO.laser tube |
Laser tube power | 150W-450W |
Transmission mode | High precision rack+square rail |
rail | 20 # square rail |
One year warranty | One year warranty for the equipment and ten months warranty for the laser tube. |
Compatible software | Coreldraw, AutoCAD, JDpaint, PS, Al and other software |
Working table | Knife worktable |
Running speed | 5-200mm/s |
working voltage | 220V |
Operating system | CCD system |
Drive system | high-precision motor + reducer |
accuracy | Repeated positioning 0.01mm |
Temperature requirements | 5℃-35℃ |
Control cabinet | Industrial anti-interference cabinet |
scope of application | Edge patrol cutting, UV, acrylic, photo frame, wood board, Paper Cuttings, leather, felt. |
◣Samples
01 Packaging paper carving 02 Light guide plate 03 Leather carving 04 Wood carving
